TWN 0086

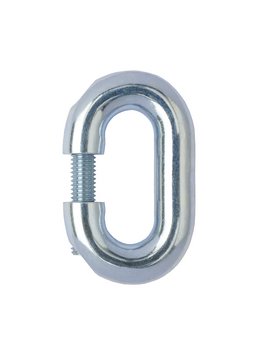

Screw-type Connecting Links

The screw-type connecting links TWN 0086 are used to connect the conveyor chains in poultry slaughterhouses easily. The special THIELE case-hardening ensures high wear resistance and the galvanized surface provides high corrosion protection of the connecting links.

The manufacturing and testing requirements are based on manufacturer specific specifications.

Screw-type Connecting Links

Properties

Dimension

8 x 25,4 mm

Article-No.

F42077

Pitch p

25,4

Finish

El. galvanized

Outside Width w2

26,1 mm

Inside Width w1

9,3 mm

Einsatzgehärtet (HV 550)

min. 0,2-0,3 mm, bei min. 550 HV

Surface Hardness (HV 10)

min. 720-800 HV10

Breaking Force

min. 30 kN

Weight
app. ca. [Kg/m]

ca. 0,04 kg

CAD STEP

Download

CAD IGES

Download
