The high-quality THI-trolleys are also offered assembled with the high-quality, special abrasion-resistant, heat-treated, corrosion-protected and true-to-gauge THIELE round steel chain. Standard distance: 6“. Other distances (4“, 8“, 10“ and 12“) are possible. The first THI-Trolley is installed according to customer requirements.
The chains are delivered with a test certificate.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Conveyor Chains for Poultry Industry

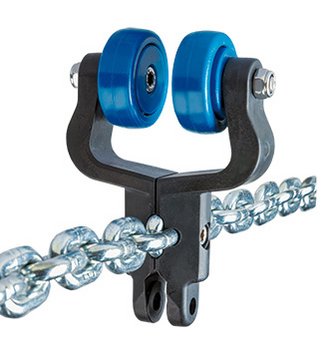

THI-Trolleys mounted with chain and connecting links
Properties
Height | Chain [mm] | Grade | Breaking Force [kN] | Length [mm] | Weight [kg] | Compatible with | Execution |
110 | 8 x 25,4 | Mn-Steel | 40 | 50 | 3.1 | Meyn | Srew design |
110 | 8 x 25,4 | Mn-Steel | 40 | 50 | 3.1 | Meyn | Clip design |
110 | 8 x 25,3 | Mn-Steel | 37 | 50 | 3.2 | Marel Stork | Srew design |
110 | 8 x 25,4 | Stainless Steel | 40 | 50 | 3.1 | Meyn | Srew design |
110 | 8 x 25,4 | Stainless Steel | 40 | 50 | 3.1 | Meyn | Clip design |
110 | 8 x 25,3 | Stainless Steel | 40 | 50 | 3.2 | Marel Stork | Srew design |
Color: THI-Rolls: Blue, RAL 5017; THI-Trolleys: grey, other colors available on request. | |||||||
