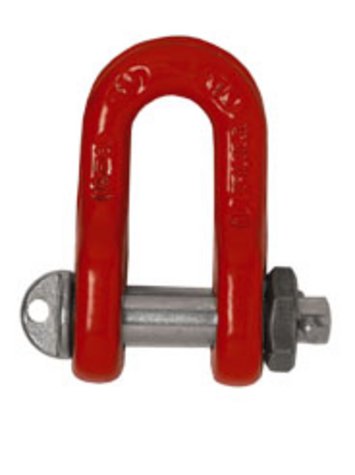

Offshore Schäkel Form C

Die Schäkel Form C mit Bolzen, Mutter und Splint TWN 0818 sind für den Gebrauch in "Lifting Sets" für Offshore-Container gem. DNV-ST-E271 vorgesehen und finden Einsatz in "Portable Offshore Units" gem.
DNV-ST-E273.

Die Herstellungs- und Prüfanforderungen basieren auf der DIN EN 1677-1.

Offshore Schäkel Form C

Eigenschaften

Nenngröße

Artikel-Nr.

Nenngröße


[DIN 82101]

Tragfähigkeit


[t]

Maße

[mm]

Gewicht
ca.


[kg]

CAD


STEP

CAD


IGES

h1

b1

b2

d1

d4

d2

10-8

F30310NV

1.0

3.15

49

21

47

15

16

32

0.42

Download

Download

13-8

F30320NV

1.6

5.30

61

27

61

19

20

40

0.84

Download

Download

16-8

F30330NV

2.5

8.00

73

33

75

23

24

48

1.49

Download

Download

18/20-8

F30340NV

4.0

12.50

91

42

96

29

30

60

3.10

Download

Download

22-8

F30350NV

5.0

15.00

111

47

107

33

36

72

4.50

Download

Download

26-8

F30360NV

6.0

21.20

120

53

212

37

39

78

6.30

Download

Download

28-8

F30370NV

8.0

25.00

140

60

136

41

45

90

10.10

Download

Download

32-8

F30380NV

10.0

31.50

149

66

152

46

48

95

12.80

Download

Download

36-8

F30390NV

12.0

40.00

158

73

167

50

52

104

15.60

Download

Download

40-8

F30400NV

16.0

50.00

185

81

185

55

60

120

22.20

Download

Download

45-8

F30410NV

20.0

63.00

211

90

206

61

68

136

26.30

Download

Download

Die Tragfähigkeiten, Herstellungs- und Prüfanforderungen entsprechen der DNV-ST-E271 und liegen teilweise über denen der DIN EN 1677-1 und DIN EN 1677-4.
