Forged Link Chains

All THIELE forged links are produced in the company’s own drop forging shop. The general dimensions of the links correspond to the die-forging tolerances laid down in DIN EN 10243, F. The mating dimensions are finely calibrated.

Through its in-house engineering department, THIELE ensures that all interfaces are adapted to the technical requirements. Thus, even very individual customer wishes can be taken into account.

The mechanical processing of the individual components takes place on CNC-controlled machining centers.


Product characteristics

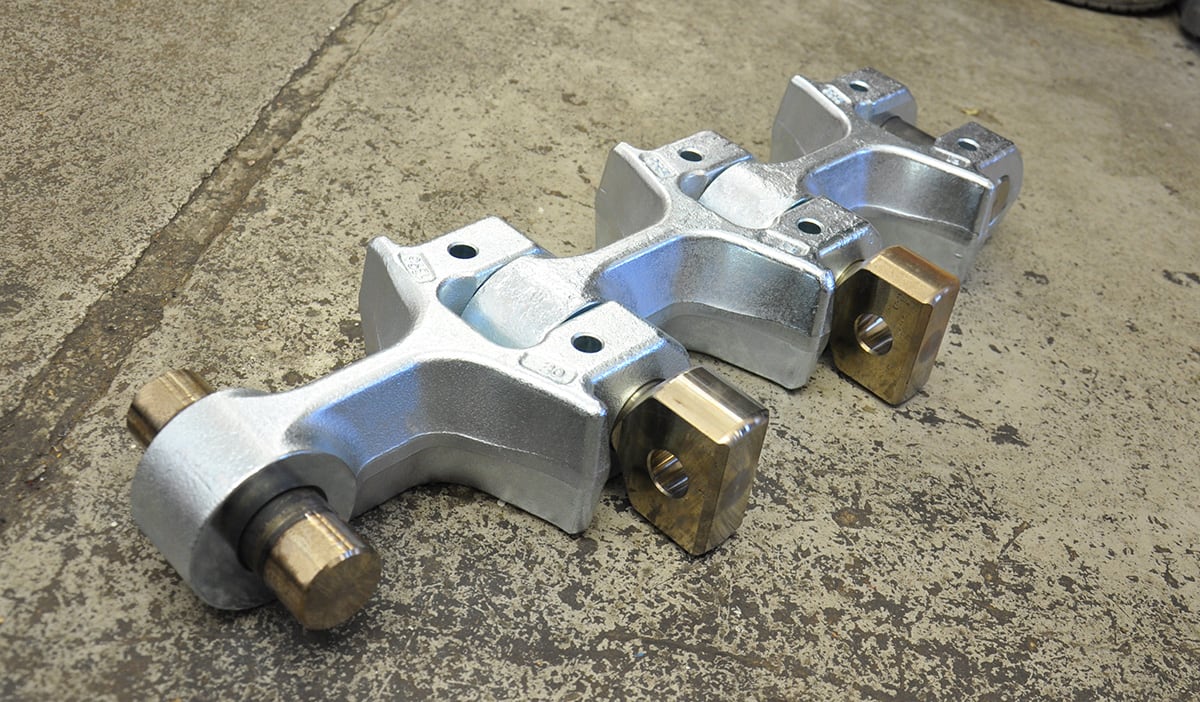

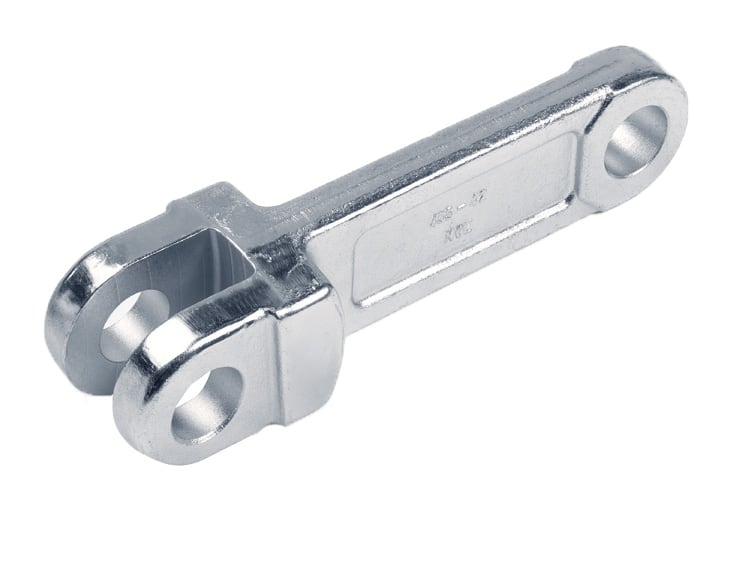

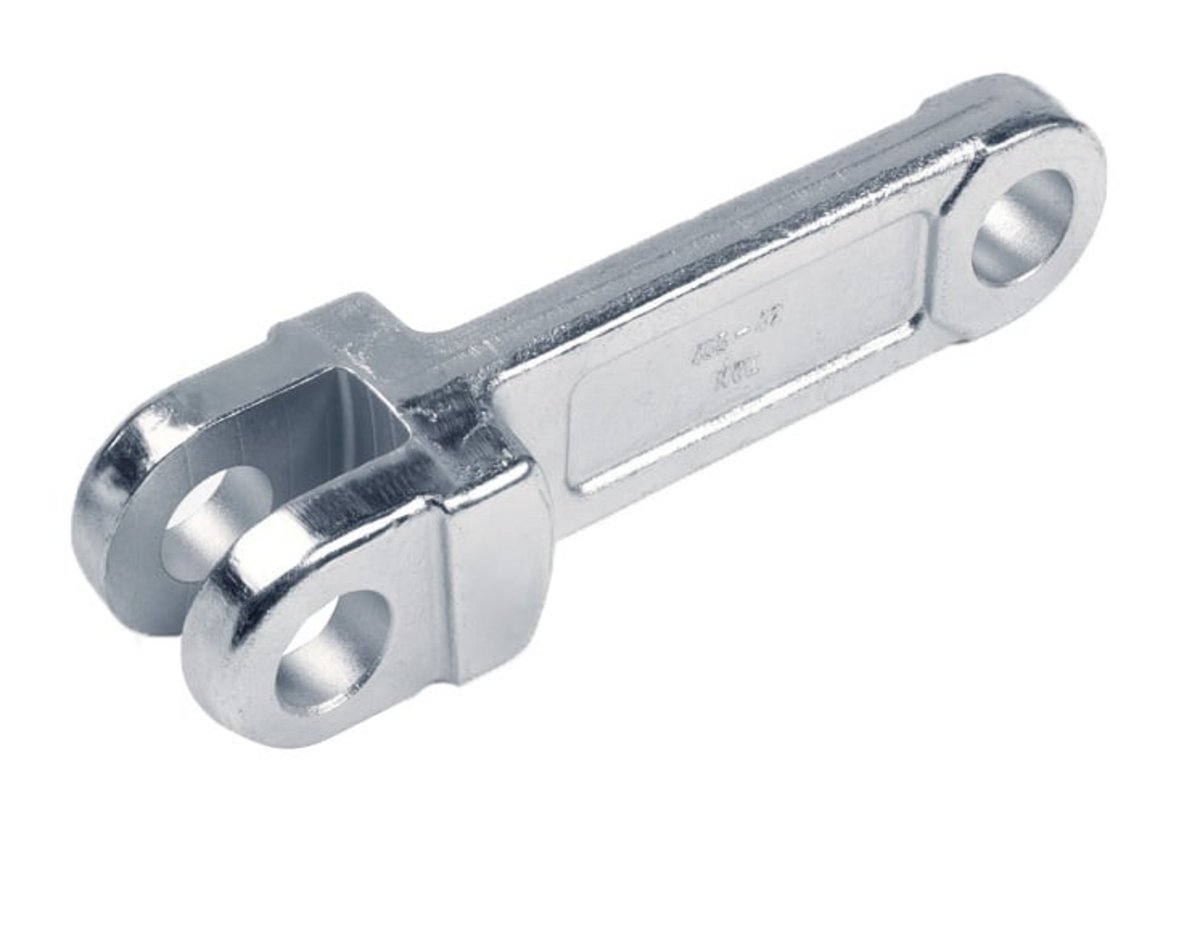

  • Drop-forged clevis plates
  • with and without bushing
  • in case-hardened or tempered steel
  • Chain pitch from 102 mm to 260 mm
  • Tensile strength up to 2100 kN
  • Sprockets with induction-hardened tooth flanks

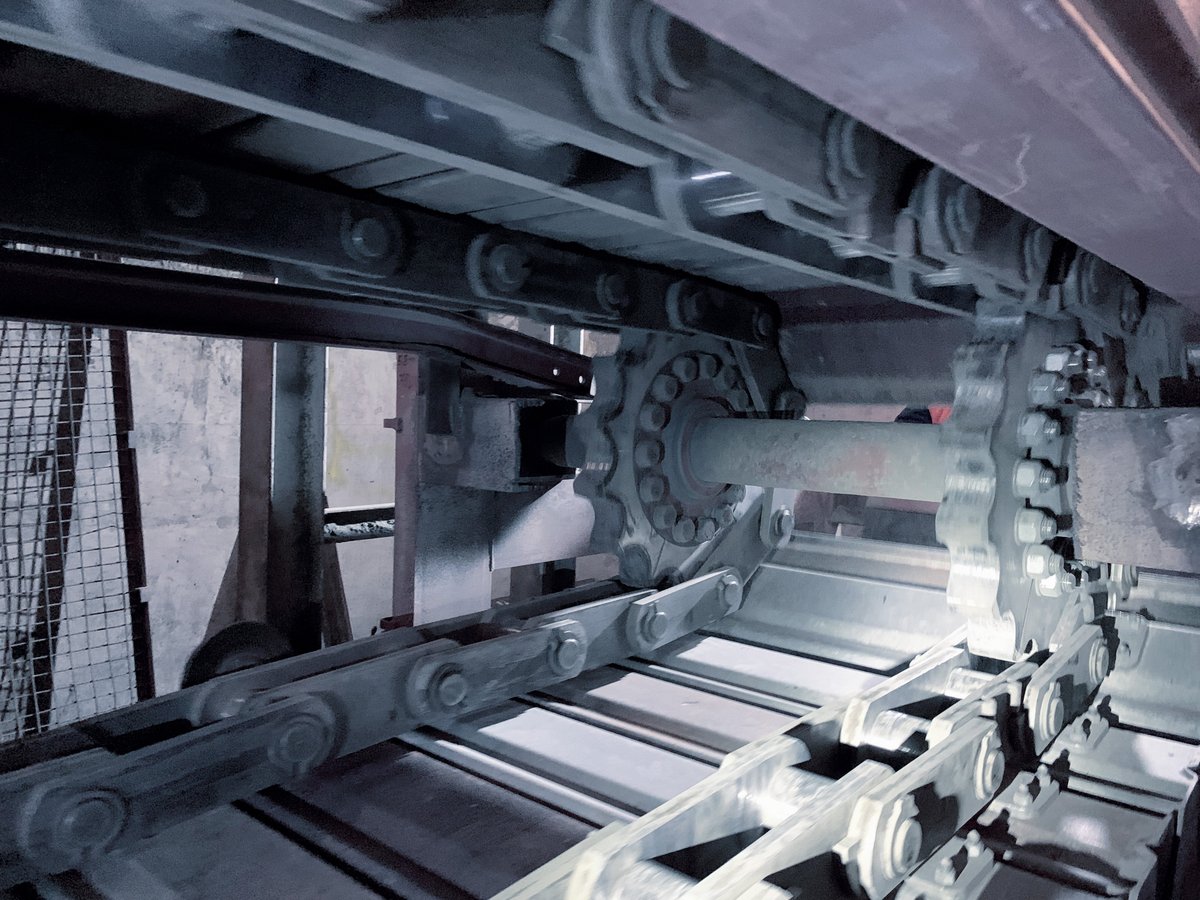

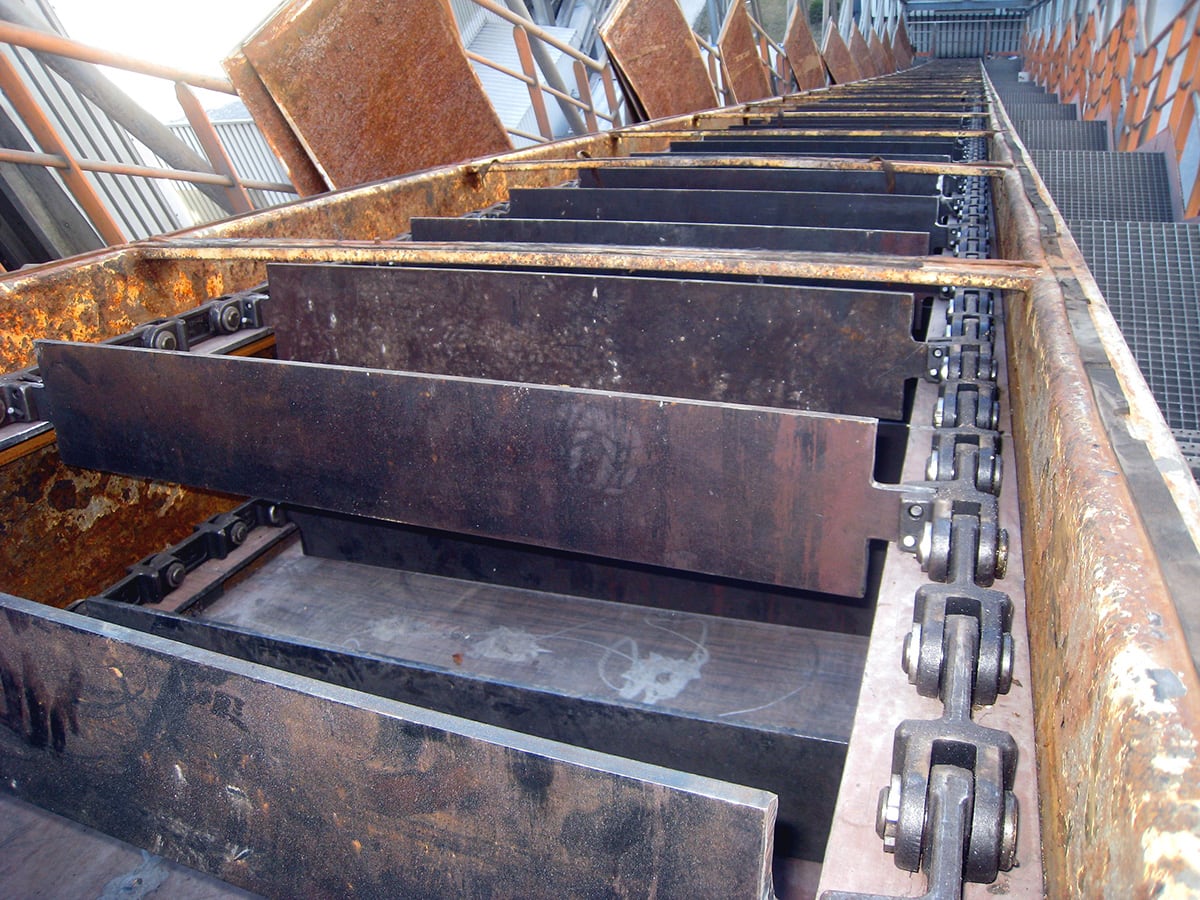

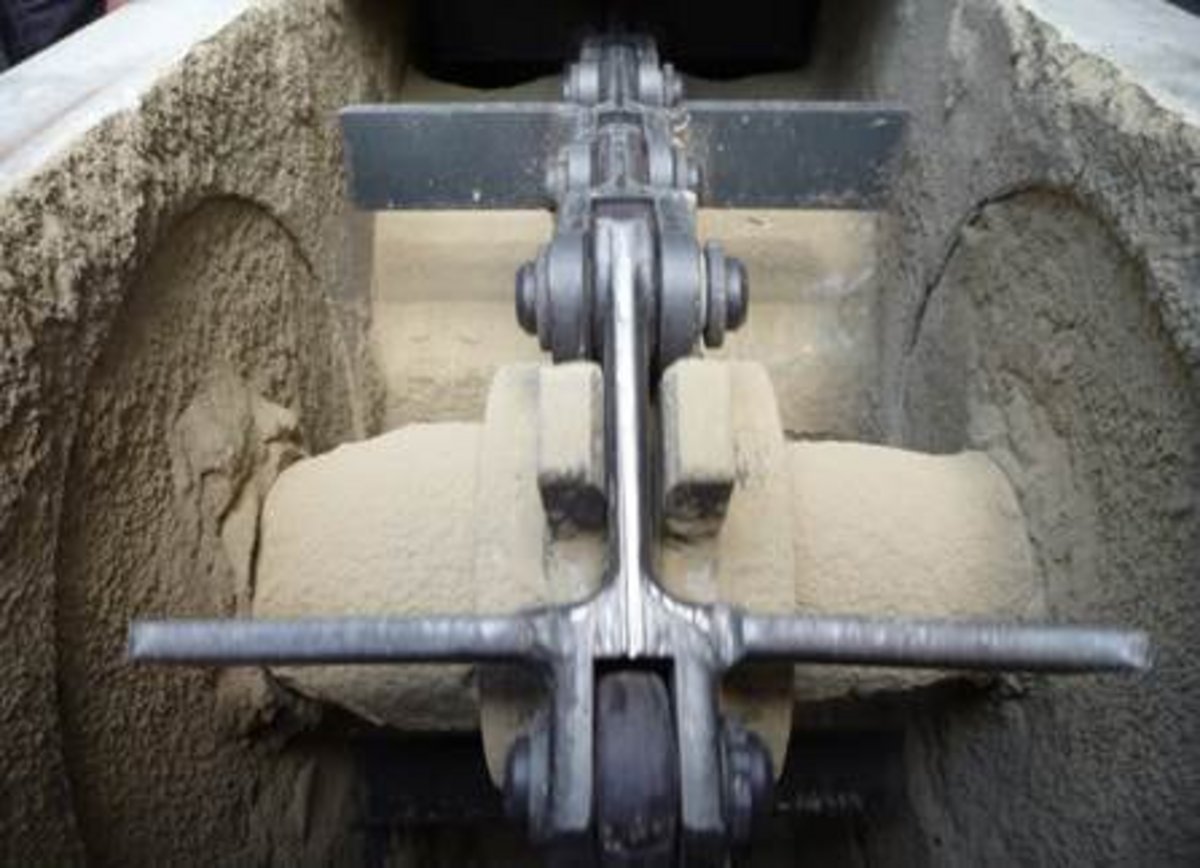

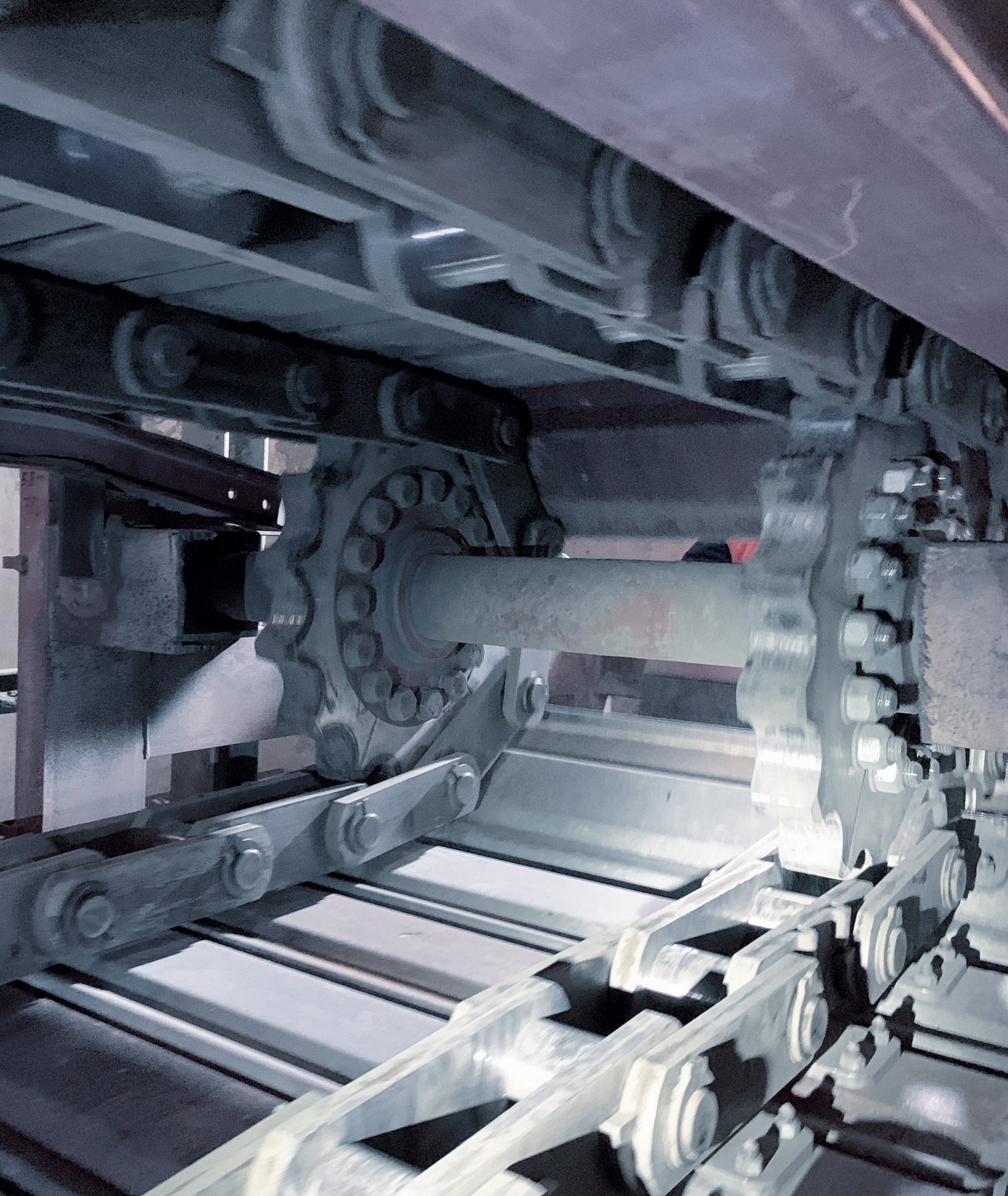

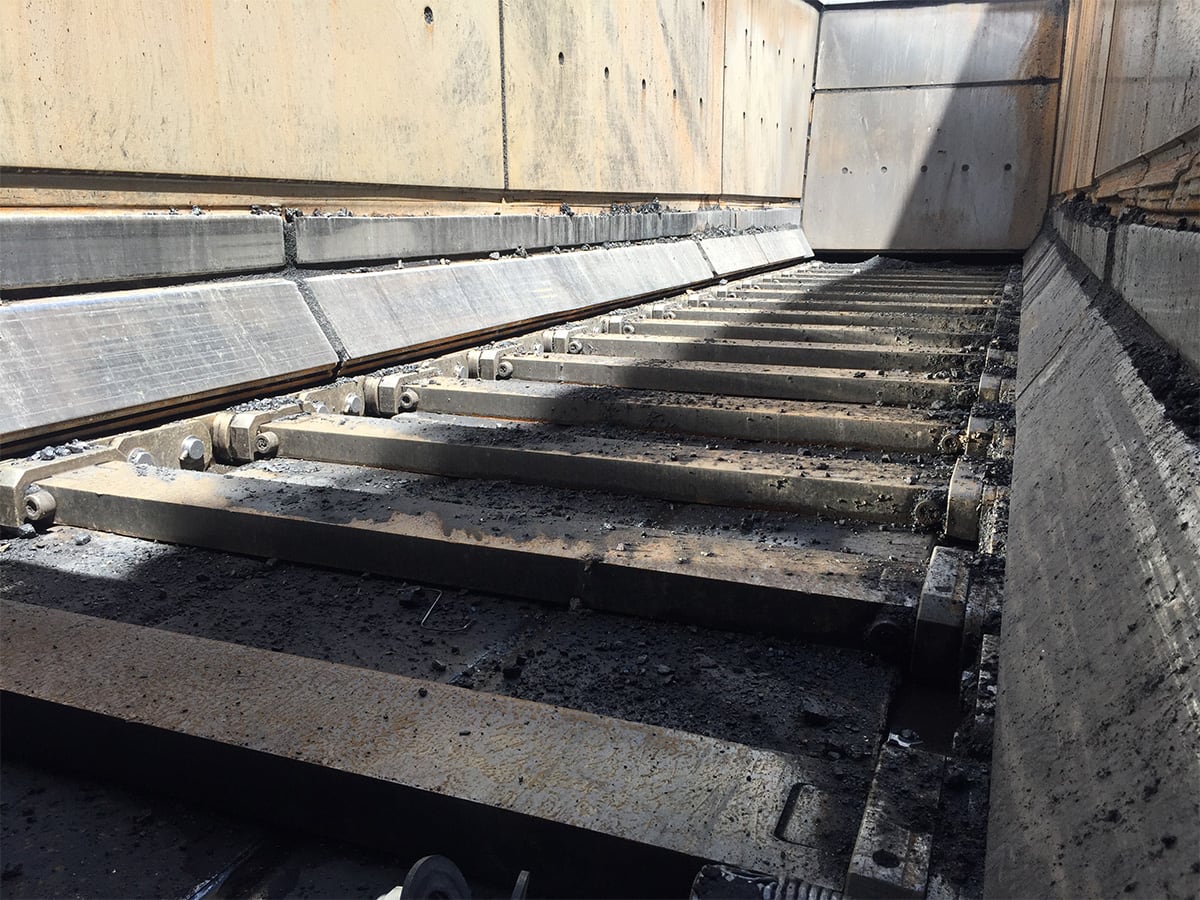

Applications

  • Cement works
  • Steelworks
  • Fertilisers
  • Biomass (and biomass fired power stations)
  • Chemistry
  • Recycling companies
  • Building materials depots
  • Coal preparation plants
  • and many more

Product designs

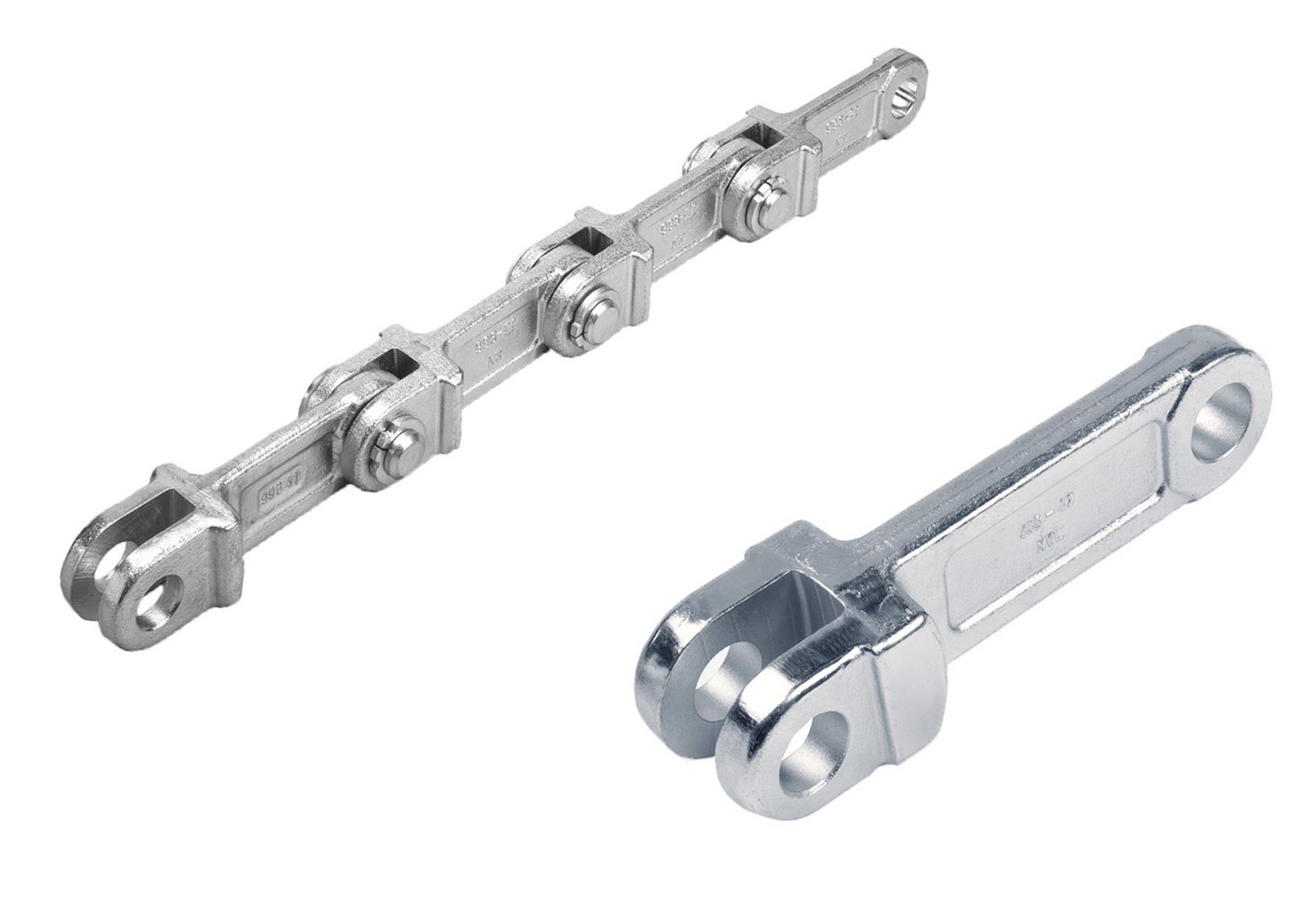

Single-strand forged link

Detailed information on the product variants can be found in our Forged Link Chain Catalogue.

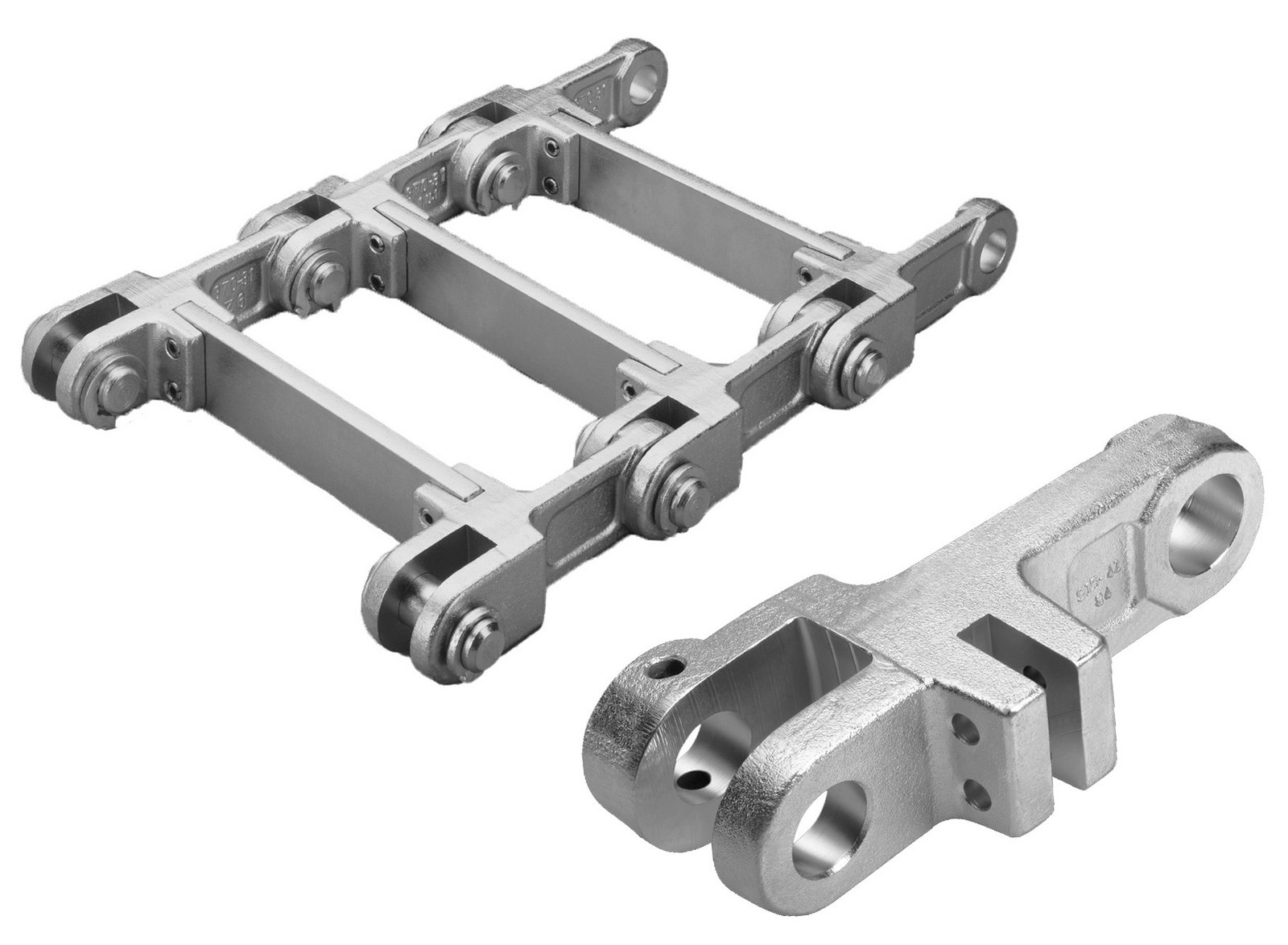

Twin-strand forged links

Detailed information on the product variants can be found in our Forged Link Chain Catalogue.

Didn't find the right product?

Do you need a conveyor chain for special materials, systems or extreme external influences? Then our expert sales team will be happy to advise you. Give us a call or send us an e-mail with your request.

We are looking forward to your inquiry!
