Lifting Products Grade 80 Lifting Products Grade 80

TWN 0601

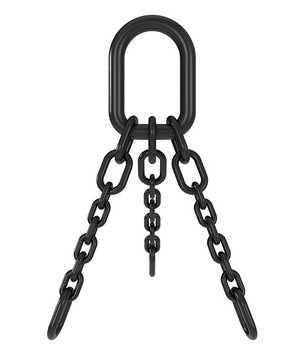

Magnet Chain Slings

Magnet sling chains according to TWN 0601 are usually being fixed to magnets.

After the magnet sling chain is being attached to the crane hook, it is possible to lift and transport magnetic material like e.g. steel scrap.

The design of the magnetic sling chains is based on ASTM A906/A906M. The dimensions, the working load limit

and the manufacturing and testing requirements of the chain slings are based on the ASTM A391/A391M.

The dimensions of the connecting or intermediate links type B comply with the DIN 5688-3.

Magnet Chain Slings

Properties

Trade Size



Article-No.

Working
Load Limit

0° < β ≤ 30°





[t] max.

Working Length

e


[mm]



D-Link



[mm]

Master-Link



[mm]

Weight
app.





[kg]

CAD


STEP

CAD


IGES

α = 90°

β = 0°

α = 60°

β = 30°

d1

t1

b1

d2

t2

b2

16-8

F08945

21.30

828

752

45

260

155

20

90

45

23.70

Download

Download

20-8

F08946

33.40

940

849

51

260

155

22

100

50

35.50

Download

Download

22-8

F08947

40.25

1,002

909

57

300

165

26

120

60

46.00

Download

Download

26-8

F08948

56.25

1,126

1,015

57

300

165

32

140

70

64.00

Download

Download

32-8

F08961

85.20

1,362

1,224

63

330

165

40

180

90

109.00

Download

Download

Inquire about product >
