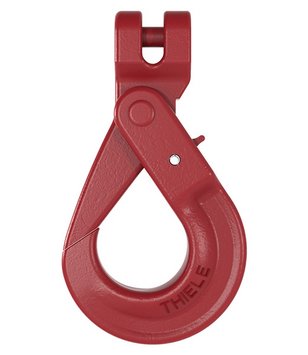

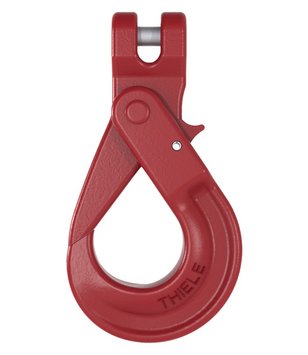

The grade 80 clevis self-locking hooks TWN 0799 are used to assemble chain slings and are often used in the construction industry. The clevis design enables the direct attachment to the lifting chain. The hooks lock automatically when under load and may only be reopened manually if not under load anymore.
The self-locking hooks comply with the DIN EN 1677-3.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0799
Clevis Self-Locking Hooks
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||||||
a | b | c | d | e | g | h | l | ||||||
6-8 | Z07279 | 1.12 | 7 | 33 | 18 | 21.5 | 98 | 28 | 22 | 135 | 0.57 | ||
8-8 | Z07280 | 2.00 | 9 | 39 | 23 | 23 | 121 | 33 | 25 | 164 | 0.91 | ||
10-8 | Z07281 | 3.15 | 13 | 47 | 27 | 27 | 150 | 45 | 34 | 204 | 1.72 | ||
13-8 | Z07282 | 5.30 | 15.5 | 56 | 35 | 35 | 187 | 54 | 40 | 253 | 3.33 | ||
16-8 | Z07296 | 8.00 | 18 | 76 | 41 | 41 | 220 | 67 | 50 | 305 | 6.20 | ||
18/20-8 | F0922065 | 12.50 | 24 | 82 | 48 | 48 | 247 | 74 | 53 | 336 | 9.15 | ||
