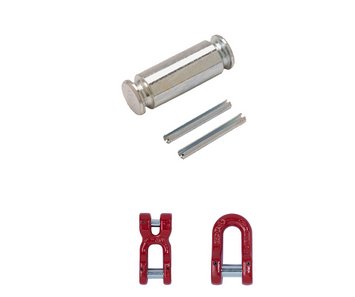

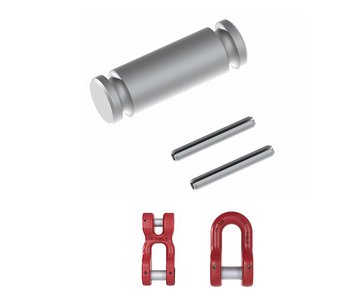

The spare part sets TWN 0905 / 0906 consist of a bolt and 2 dowel pins and are suitable for grade 80 coupling shackles TWN 0861 and bolt shackles TWN 0870.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0905 / 0906
Spare Part Sets for Shackles
Properties
Trade Size | Article-No. | Packing Units | Weight [kg] | CAD STEP | CAD IGES |
10-8 | F48036 | 1 set | 0.07 | ||
13-8 | F48039 | 1 set | 0.14 | ||
16-8 | F48042 | 1 set | 0.25 | ||
18/20-8 | F48045 | 1 set | 0.44 | ||
22-8 | F48048 | 1 set | 0.78 | ||
26-8 | F48051 | 1 set | 1.05 | ||
28-8 | F48054 | 1 set | 1.60 | ||
32-8 | F48057 | 1 set | 2.02 | ||
36-8 | F48060 | 1 set | 2.60 | ||
40-8 | F48063 | 1 set | 3.89 |
