TWN 5200 VG

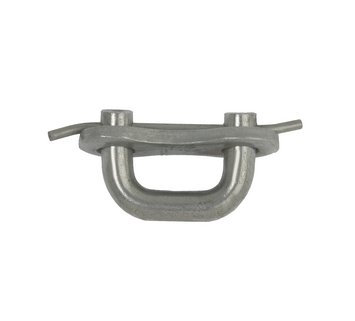

Special Connecting Links Type VG

The special connecting links type VG TWN 5200 are used to connect round steel chains in loader wagons and dung spreaders.

The manufacturing and testing requirements are based on the specifications of the manufacturer THIELE.

Properties

Dimension [mm]	Article-No.	Breaking Force [kN] min.	Weight app. [kg]
8 x 24/8 x 22,8	F05500	70	0.066
8 x 31/9 x 31	F05510	85	0.079
8 x 28*	–	85	0.079
9,5 x 27/10 x 26	F05531	90	0.095
10 x 28	F05541	100	0.100
10 x 30,5	F05550	100	0.100
10 x 31/11 x 31	F05551	100	0.130
10 x 35	F05555	100	0.100
10 x 38*	F05560	100	0.100
11 x 35	F05564	100	0.100
12 x 36	F05574	140	0.240
13 x 36	F05570	170	0.240
13 x 45*	F05575	170	0.255
14 x 42	F05568	190	0.145
* On request Finish: Bright polished Minimum order quantity: 50 pieces
