TWN 1001
TM Lever Blocks

The TM lever blocks TWN 1001 are hand-operated portable devices for pulling, lifting and moving loads. They can also be used as lashing device in accordance with DIN EN 12195-3. They have an integrated slipping clutch (except 250 kg) as overload protection.

The galvanized load chain complys to DIN EN 818-7.

TM Lever Blocks

Properties

Unit

TM-LB 025*

TM-LB-OP 075N

TM-LB-OP 150N

TM-LB-OP 300N

TM-LB-OP 600N

Working
Load Limit (Tensioner under straight load)

[t]

0.25

0.75

1.5

3.0

6.0

Lift app. 1,50 m

[Article-No.]

F061901

F062411

F062511

F062611

F062711

Lift app. 3,05 m

[Article-No.]

F061902

F062412

F062512

F062612

F062712

Lift app. 4,60 m

[Article-No.]

F061903

F062413

F062513

F062613

F062713

Lift app. 6.10 m

[Article-No.]

F061904

F062414

F062514

F062614

F062714

Chain Falls

[piecesl]

1

1

1

1

2

Effort to lift for max. Working Load

[kg]

2

14

22

32

34

Loadchain diameter

[mm]

4

6

8

10

10

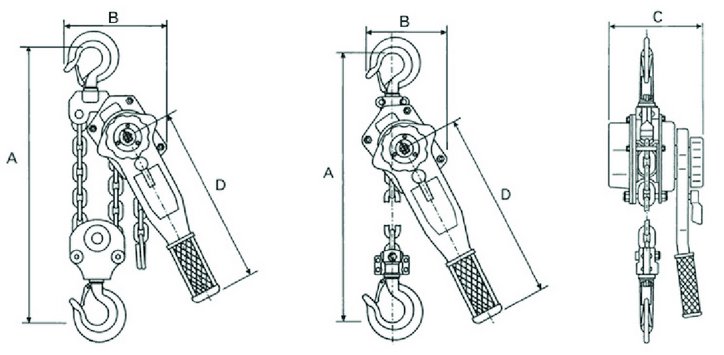

Length of lever handle (D)

[mm]

160

280

410

410

410

Headroom (A)

[mm]

230

325

380

480

620

Width (B)

[mm]

85

136

160

180

235

Depth (C)

[mm]

92

148

172

200

200

Hook opening (upper)

[mm]

25

42

46

54

62

Hook opening (lower)

[mm]

25

42

46

54

62

Net weight (for lift 3,05 m)

[kg]

2.37

7.10

13.20

21.75

32.97

Lever block only

[Article-No.]

F06192

F06243

F06253

F06263

F06273

* TM-LB 025 without overload protection
