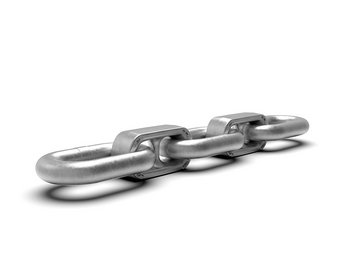

BROADBAND Low Profile Chain

THD, TZN BROADBAND Low Profile Chain

For all face conveyors with normal and high production output demands, we recommend the THD grade chains. This THD grade was developed to provide the chain with the longest operating life under typical conditions of wear, corrosion, and fatigue.
Under very corrosive conditions, we recommend using the hot-dip galvanized TZN chains, which prevent any type of corrosion.

Note: „BROADBAND low profile chain“ is a trademark of Joy Mining Machinery part of Joy Global Inc.

  • For normal and high production output demands
  • Longest operating life under typical conditions
  • Available as hot-dip galvanized version, which prevent any type of corrosion: TZN
THD, TZN BROADBAND Low Profile Chain

Properties

Trade Size

d x t

Article-No.

TEC




Article-No.

TZN




Proof Force

kN

Elongation under test force

% max.

Breaking Force

kN min.

Elongation at Break

%

Deflection

[mm]

38 x 126/148

F13977

F13976

1,360

1.4

1,820

11

38

42 x 128/164

F14920

F14923

1,660

1.4

2,200

11

42

50 x 146/174

F13951

F13942

2,260

1.4

3,015

11

49

56 x 168/204

F13989

F13968

2,900

1.4

4,000

11

56

60 x 180/220

F13999

a.A.

3,395

1.4

4,525

11

60

64 x 192/234

F13901

a.A.

3,860

1.4

5,150

11

64

Note: the above values apply to chains in ‘natural black’ condition (NSW)
