S-Type Flight Bars

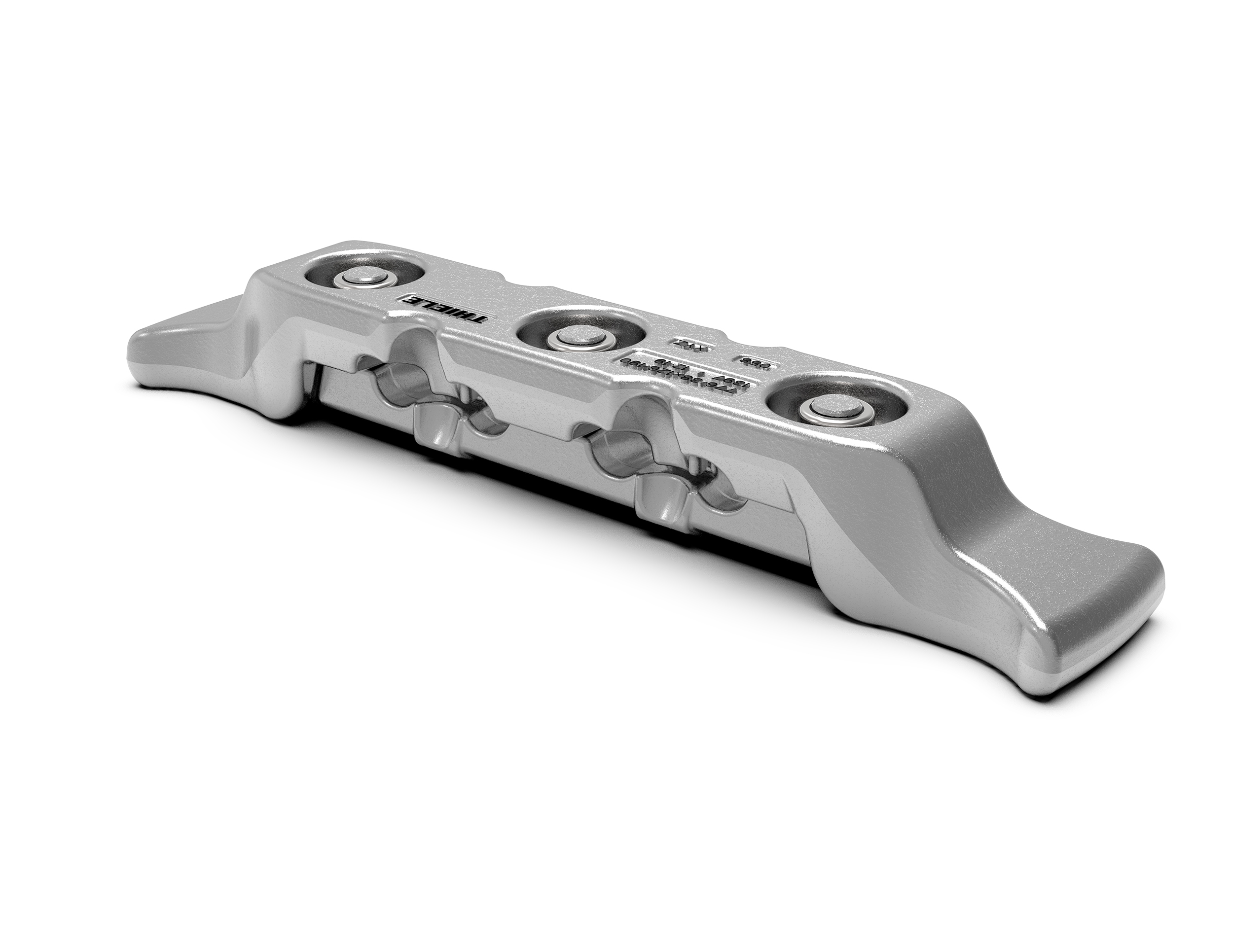

THIELE S-Type Flight Bars with Strap / Bow

THIELE offers a wide range of flight bars for face conveyors and stage loaders with chain sizes of Ø 18 mm - Ø 48 mm. All flight bars are drop forged, calibrated and sandblasted. The strength of the barwill depend on the material used. By using a precise heat treatment process THIELE is able to guarantee high notch-impact values at hardness levels of 270-380 HB. THIELE also offers flight bars with inductionhardened tips for special operating conditions.
Advantages of the S-Type Flight Bar

  • Long life time
  • Compatible with original manufacturer’s chain sprockets
  • High flexural strength
  • Can be supplied with hex-head or hammer-head bolts
  • Bi-directional
  • Available with straps (a) or bows (b)
THIELE S-Type Flight Bars with Strap / Bow

Properties

Trade Size


d x t

Description

Article-No.

complete

CC



[mm]

Dimensions

Weight
app.


Kg

length

[mm]

h

[mm]

c

[mm]

d

[mm]

α

[°]

ß

[°]

22x86

SK/585/22/120

F24340

120

585

75

59.5

15

40

5

16.5

24x86

SK/590/24/120

F24345

120

590

81

59.5

15

40

5

17.1

26x92

SK/684/26/120

F24351

120

684

100

69

19

47

5

27.3

26x92 Fl.

190x642/26/200

F24349

200

594

75

58

21

42

5

17.2

26x92 FL.

H205/752/26x92FL/200

F243523

200

752

76

58

25

35

5

23.8

30x108

DMKF-3

F24560

130

673

101

46

13

30

20

28.4

30x108

HB280/780/30/130

F24503

130

696

110

77

29

45

13

35.8

30x108

988/30/200

F245200

200

988

100

67

17

45

5

46.0

30x108

HB227/740/30/280

F245078

280

740

101

50

19

30

17

34.0

30x108

PF2.30-832/772/30/115

F245087

115

772

100

50.5

13

35

19

30.7

30x108

KSD-27 676/30x108/280

F245075

280

676

102

70

21

40

25

31.0

30x108 Fl.

E74/583/30/200

F245123

200

583

95

47

14

30

20

21.0

30x108 Fl.

676/30/140

F24510

140

676

110

55

21

35

19

30.3

34x126

PF3-822/34/150

F24553

150

682

117

57

21

55

19

35.3

34x126

PF4-932/34/150

F24556

150

772

114

67

22

55

19

46.7

34x126

PF4-932/34/130

F24557

130

775

114

65

20.5

60

19

46.0

34x126

PF4-932/34/145

F24547

145

772

114

67

22

55

18.5

43.2

34x126

PF2.30-732/34

F245540

130

676

115

52

17

35

19

39.0

34x126

776/34/150

F24551

150

776

113

R17,7

-

-

15

40.9

34x126

888/34/200

F245455

200

888

114

65

14

45

5

48.9

34x126

PF4-1132/976/34/130

F24539

130

976

115

65

20.5

60

19

57.8

34x126

PF4-832/34/130

F245393

130

676

115

65

20.5

60

19

40.0

34x126

1188/34/500

F245595

500

1,188

122

-

-

-

-

84.3

34x126

222/1142/34x126/375

F245397

375

1,142

115

64

19

45

9

66.2

34x126 Fl.

JT/789/34/160

F24545

160

789

116

63

21

42

9

42.7

38x126 Fl.

JT/888/38/200

F24582

200

888

118

76

25

45

11

53.3

38x126 Fl.

PF5-1342/38/330

F245895

330

1,175

118

65

22

60

20

75.5

38x126 Fl.

PF6-1542/38/330

F245898

330

1,375

125

60

19

60

20

87.0

38x126 Fl.

1285/38/500

F245897

500

1,285

116

-

-

-

-

82.0

38x126 FL.

RYB-850/776/38x126FL/190

F24710

190

776

113

42

-

-

12

44.0

38x126 S-FL

1338-38x126/500 S-FL

F245896

500

1,338

120

-

-

38

38

96.0

38x137 Fl.

788/38x137/200

F24574

200

788

114

65

14

45

5

41.8

38x137 Fl.

AT/784/38/200

F245745

200

784

117

56

23

60

9

42.3

38x137 Fl.

JT/988/38/200

F24576

200

988

118

75

24

45

11

59.6

38x137 Fl.

781/38/200

F24594

200

781

114

49.5

16

35

19

41.7

38x137 Fl.

977/38/200

F24584

200

977

114

54

R20

60

10

52.5

38x137Fl.

NW/882/38x137/170

F245945

170

882

114

50

30

50

9

47.4

38x146 Fl.

297x950

F245890

180

874

117

64

22

40

6

46.8

38x146 Fl.

JT/1268/38/345

F245970

345

1268

116

54

22

41

8

62.0

38x146 Fl.

787/38/180

F24640

180

787

118

75

24

45

11

43.9

42x140 BIG-T

222/1282/42x140/152/500

F246033

500

1,282

125

64

19

45

9

86.0

42x146 Fl.

JT/988/42/220

F247280

220

988

126

70

20

48

8

64.3

42x146 Fl.

JT/925/42/200

F24591

200

925

134

74

34

36

6

65.2

42x146 Fl.

JT/878/42/200

F247252

200

878

126

66

20

46

8

52.8

42x146 Fl.

JT/988/42/165

F24600

165

988

122

65

23.5

40

5.5

56.1

42x146 Fl.

PF6-1142/42/165

F246010

165

976

116

60

16

60

20

60.0

42x146 S-Fl.

PF6-1342/1176/42/330

F246035

330

1,176

125

60

19

60

20

73.0

42x146 Fl.

PF6-1342/42/165

F24603

165

1,175

125

60

19

60

20

72.0

42x146 Fl.

PF4-1332/42/165

F24602

165

1,170

125

60

18

59

20

74.8

42x146 Fl.

JT/926/42/200

F247270

200

926

126

66

20

46

8

60.6

42x146 Fl.

LPT988/42/220

F247320

220

988

122

65

23

41

5

56.6

42x146 Fl.

LPT878/42/200

F247340

200

878

121

55

29

37

5.5

49.0

42x146 Fl.

1088/42/220

F247370

220

1,088

126

76

23

45

9

73.0

42x146 Fl.

TH/878/42/200

F247254

200

878

126

66

21

45

8

52.8

42x146 FL.

978/42x146/200

F247287

200

978

120

55

20

65

10

54.8

42x146 FL

PF-6-1542/1375/42x146FL/330

F246025

330

1375

135

58

23

45

21

102.5

42x146 FL.

AM-34 784/42x146 FL.

F247305

200

784

116

62

20

60

10

42.0

42x146 S-Fl.

PF6-1042/42/165**

F247330

165

876

116

60

16

60

20

51.4

48x144-160

PF4-1232/1075/48x144/160FL/250

F247735

250

1,075

135

65

20

60

19

77.7

48x152 Fl.

PF4-1132/975/48/250

F24771

250

975

129

64

16

60

20

66.8

48x152 Fl.

JT/988/48/280

Z09274

280

988

136

67

14.5

45

10

64.1

48x152 Fl.

JT/978/48/280

F24770

280

978

135

76

22

45

10

62.4

48x152 Fl.

268x988/48/280

F247722

280

988

135

77.5

25

45

10

65.5

48x152 Fl.

222/988/48x152/250

F247705

250

988

135

66

30

36

8

58.0

48x152 S-FL.

988/48x152/280 S-FL.

F24774

280

988

126

70

20

45

8

63.9

48x152 S-FL.

LA-988/48x152/250

F247706

250

988

130

62

20

40

6

55.0

38x126/148 BB

JT/988/38BB/240

F247015

240

988

94

51

19

45

11

53.0

38x126/148-BB

222/788/BB 38x126/148/240

F2470155

240

788

102

64

19

45

9

40.4

42x128/164-BB

222/888/42BB/280

F246018

280

888

109

64

19

45

9

53.0

42x128/164-BB

222/988/42BB/280

F246015

280

988

109

64

19

45

9

61.1

42x128/164-BB

NL/988/42x128-164BB/280

F246013

280

988

109

75

20

45

10

62.8

50x146/174-BB

222/988/50BB/280

F24785

280

988

126

64

16

45

10

62.5

50x146/174-BB

222U/988/50BB/280

F247855

280

988

136

77

26

45

9

70.0

52x170 S-FL

PF4-1132/97552x170 S-FL/270/CTH

F24801

270

975

130

64

16

60

20

64.0

*Note: all dimensions given exclude forging tolerances; **Art.-No. bow; compatible with PF4-1032
