Hoist Chains

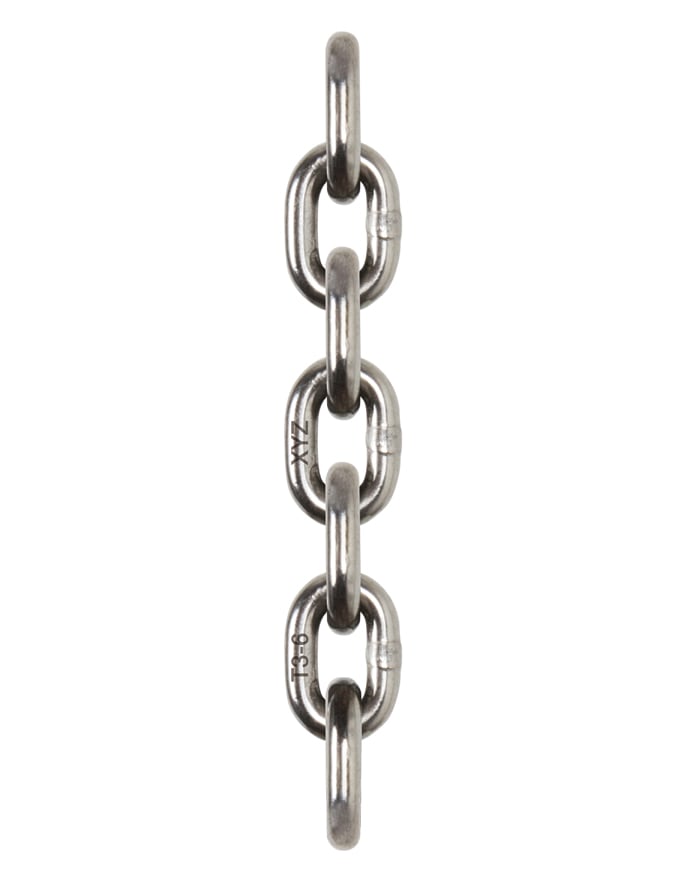

The hoist chains TWN 0063 (DAT Type) are used as load chains predominantly in electric chain hoists for universal industrial applications. The hoist chains are case-hardened, galvanized and comply with the DIN EN 818-7.
Find more information about Surface Hardness, Nominal Stress, Fatigue Strengt, Chemical Composition, Operating Temperatures and more in our Catalogue "THIELE Hoist Chains".
Trade Size | Article-No. Execution | Nom. Size
| Pitch | Width (B)
| Working [t] max. | Weight [kg/m] | Measuring Length
| |||||
Bright polished | Electro galvanized | dn [mm] | Abw. ± [mm] | pn [mm] | Abw. ± [mm] | w1 [mm min.] | w2 [mm max.] | 11 x p [mm] | Tol. ± [mm] | |||
4 x 12 | – | F09008 | 4.0 | +0,20 / -0,20 | 12 | +0,15 / -0,10 | 4.80 | 13.60 | 0.40 | 0.35 | 132.0 | +0,40 / -0,20 |
4,2 x 12,2 | – | – | 4.2 | +0,10 / -0,20 | 12 | +0,15 / -0,10 | 4.80 | 13.70 | 0.40 | 0.39 | 134.2 | +0,40 / -0,20 |
5 x 15 | – | F09018 | 5.0 | +0,20 / -0,20 | 15 | +0,20 / -0,10 | 6.00 | 17.00 | 0.60 | 0.55 | 165.0 | +0,50 / -0,30 |
5,3 x 15,2 | – | – | 5.3 | +0,10 / -0,20 | 15 | +0,20 / -0,10 | 5.90 | 16.90 | 0.60 | 0.63 | 167.2 | +0,50 / -0,30 |
6 x 18 | – | F09028 | 6.0 | +0,20 / -0,20 | 18 | +0,25 / -0,10 | 7.20 | 20.40 | 0.90 | 0.79 | 198.0 | +0,60 / -0,30 |
7 x 211) | – | F09033 | 7.0 | +0,10 / -0,28 | 21 | +0,30 / -0,00 | 8.40 | 23.40 | 1.20 | 1.08 | 231.0 | +0,70 / -0,00 |
7 x 22 | – | F09038 | 7.0 | +0,30 / -0,30 | 22 | +0,30 / -0,15 | 8.40 | 23.80 | 1.20 | 1.06 | 242.0 | +0,80 / -0,40 |
7,4 x 21,2 | – | – | 7.4 | +0,10 / -0,30 | 21 | +0,30 / -0,15 | 8.40 | 23.80 | 1.20 | 1.23 | 233.2 | +1,70 / -0,70 |
8 x 24 | – | F09048 | 8.0 | +0,30 / -0,30 | 24 | +0,30 / -0,15 | 10.20 | 27.20 | 1.60 | 1.41 | 264.0 | +0,80 / -0,40 |
9 x 271) | – | F09053 | 9.0 | +0,10 / -0,40 | 27 | +0,25 / -0,10 | 10.80 | 30.40 | 2.00 | 1.79 | 297.0 | +0,70 / -0,30 |
10 x 30 | – | F09058 | 10.0 | +0,40 / -0,40 | 30 | +0,40 / -0,20 | 12.00 | 34.00 | 2.50 | 2.21 | 330.0 | +1,00 / -0,50 |
11 x 311) | – | F09063 | 11.0 | +0,30 / -0,40 | 31 | +0,30 / -0,15 | 13.20 | 36.50 | 3.00 | 2.75 | 341.0 | +0,90 / -0,30 |
13 x 36 1) | – | – | 13.0 | +0,10 / -0,50 | 36 | +0,35 / -0,15 | 15.20 | 42.90 | 4.20 | 3.87 | 396.0 | +1,10 / -0,20 |
16 x 45 1) | – | – | 16.0 | +0,30 / -0,60 | 45 | +0,45 / -0,25 | 18.20 | 52.80 | 6.30 | 5.82 | 495.0 | +1,40 / -0,50 |
18 x 50 | – | – | 18.0 | +0,90 / -0,90 | 50 | +0,65 / -0,35 | 21.60 | 61.20 | 8.00 | 7.40 | 550.0 | +1,75 / -0,85 |
22 x 66 1) | – | – | 22.0 | +0,80 / -1,10 | 66 | +0,65 / -0,35 | 27.00 | 75.00 | 12.50 | 10.70 | 726.0 | +2,00 / -0,70 |
31,5 x 901)2) | – | – | 31.5 | +1,60 / -1,60 | 90 | +1,20 / -0,60 | 37.80 | 107.10 | 31.50 | 22.40 | 990.0 | +3,20 / -1,60 |
1) Limited tolerances. Also complies with RAG 726 300. | ||||||||||||
