TWN 0062
Hoist Chains Type T

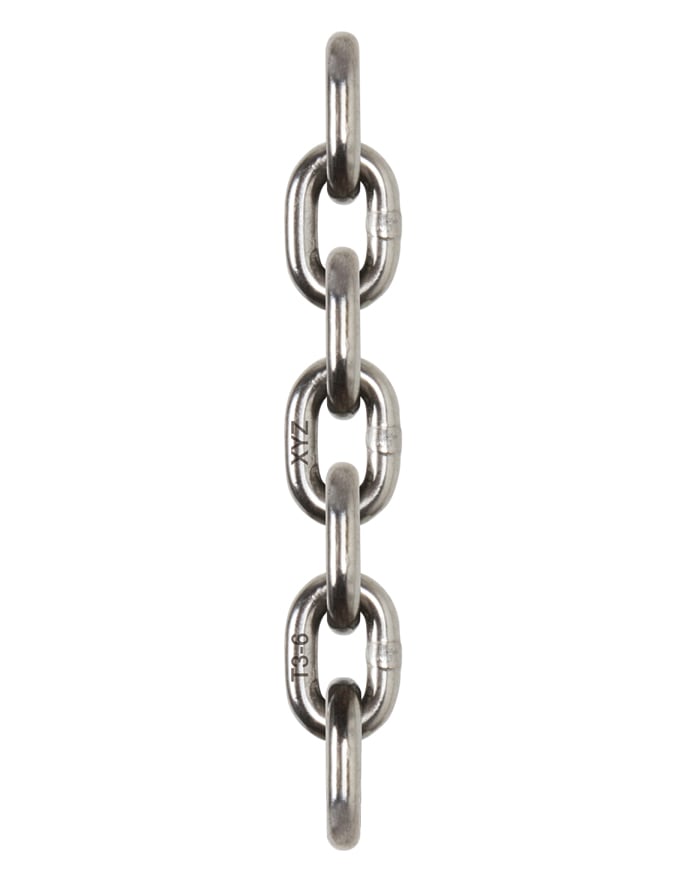

The hoist chains TWN 0062 (T type) are used as load chains predominantly in manually operated hoists, e.g. in TM Chain Blocks and  TM Lever Blocks. They are also used in motor-driven electric chain hoists that are used as maintenance hoists in wind turbines as maintenance hoists. The hoist chains are tempered, galvanized and comply with the DIN EN 818-7.

Find more information about Surface Hardness, Nominal Stress, Fatigue Strengt, Chemical Composition, Operating Temperatures and more in our Catalogue "THIELE Hoist Chains".

Hoist Chains Type T

Properties

Trade Size

Article-No.

Execution

Nom. Size



Pitch

Width (B)




Working
Load Limit



[t] max.

Weight
app.



[kg/m]

Measuring Length




Bright polished

Electro galvanized

dn

[mm]

Tol. ±

[mm]

pn

[mm]

Tol. ±

[mm]

w1

[mm min.]

w2

[mm max.]

11 x p

[mm]

Tol. ±

[mm]

4 x 12

–

–

4.0

+0,20 / -0,20

12

+0,15 / -0,10

4.80

13.60

0.50

0.35

132.0

+0,40 / -0,20

4,2 x 12,2

–

–

4.2

+0,10 / -0,20

12

+0,15 / -0,10

4.80

13.70

0.50

0.39

134.2

+0,40 / -0,20

5 x 15

–

F09016

5.0

+0,20 / -0,20

15

+0,20 / -0,10

6.00

17.00

0.80

0.55

165.0

+0,50 / -0,30

5,3 x 15,2

–

–

5.3

+0,10 / -0,20

15

+0,20 / -0,10

5.90

16.90

0.80

0.63

167.2

+0,50 / -0,30

6 x 18

–

F09026

6.0

+0,20 / -0,20

18

+0,25 / -0,10

7.20

20.40

1.10

0.79

198.0

+0,60 / -0,30

7 x 211)

F09030

F09031

7.0

+0,10 / -0,28

21

+0,30 / -0,00

8.40

23.40

1.50

1.08

231.0

+0,70 / -0,00

7 x 22

–

F09036

7.0

+0,30 / -0,30

22

+0,30 / -0,15

8.40

23.80

1.50

1.06

242.0

+0,80 / -0,40

7,4 x 21,2

–

–

7.4

+0,10 / -0,30

21

+0,30 / -0,15

8.40

23.80

1.50

1.23

233.2

+1,70 / -0,70

8 x 24

–

F09046

8.0

+0,30 / -0,30

24

+0,30 / -0,15

10.20

27.20

2.00

1.41

264.0

+0,80 / -0,40

9 x 271)

F09050

F09051

9.0

+0,10 / -0,40

27

+0,25 / -0,10

10.80

30.40

2.50

1.79

297.0

+0,70 / -0,30

10 x 30

–

F09056

10.0

+0,40 / -0,40

30

+0,40 / -0,20

12.00

34.00

3.20

2.21

330.0

+1,00 / -0,50

11 x 311)

F09060

F09061

11.0

+0,30 / -0,40

31

+0,30 / -0,15

13.20

36.50

3.80

2.75

341.0

+0,90 / -0,30

13 x 36 1)

F09065

F09066

13.0

+0,10 / -0,50

36

+0,35 / -0,15

15.20

42.90

5.30

3.87

396.0

+1,10 / -0,20

16 x 45 1)

F09070

F09071

16.0

+0,30 / -0,60

45

+0,45 / -0,25

18.20

52.80

8.00

5.82

495.0

+1,40 / -0,50

18 x 50

F09075

F09076

18.0

+0,90 / -0,90

50

+0,65 / -0,35

21.60

61.20

10.00

7.40

550.0

+1,75 / -0,85

22 x 66 1)

F09080

F09081

22.0

+0,80 / -1,10

66

+0,65 / -0,35

27.00

75.00

15.00

10.70

726.0

+2,00 / -0,70

31,5 x 901)2)

F09085

F09086

31.5

+1,60 / -1,60

90

+1,20 / -0,60

37.80

107.10

31.50

22.40

990.0

+3,20 / -1,60

1) Limited tolerances. Also complies with RAG 726 300.
2)Similar to EN 818-7
