Lifting Points Lifting Points

TWN 0850/1
Weld-on Hooks

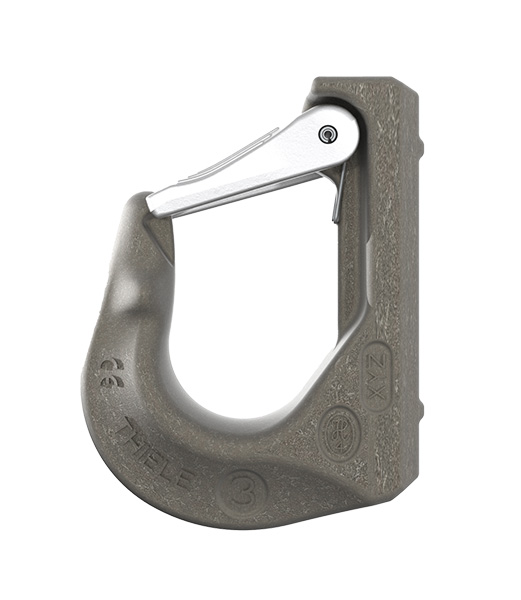

The weld-on hooks TWN 0850/1 are primarily welded to earth-moving machines, buckets, shovels and traverses for lifting, moving and securing loads. The forged safety latch prevents the load from being released unintentionally.

The manufacturing and testing requirements are based on the DGUV testing principle GS-OA 15-03.

Weld-on Hooks

Properties

Trade Size

Article-No.

self-coloured

Working
Load Limit


[t] max.

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

a

c

g

b

h

d

6

F32751*

1.12

94

24

26

77

24

85

0.51

Download

Download

8

F32752*

2.00

120

30

33

97

28

107.5

1.00

Download

Download

* W.L.L. values as per standard EN 1677-1. Test requirements according to test principle of excavator hooks for earthmoving equipments at lifting application (GS-MO 15-03) of the safety association.
The component must approve a strength introduction at the chosen place!
Welding works are to be carried out in accordance with the delivered welding instructions! Please consider manuals on our website www.THIELE.de.
