Lifting Products Grade 100 Lifting Products Grade 100

TWN 1871

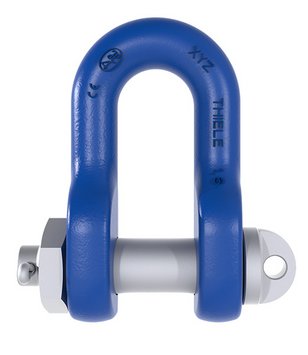

Bolt Shackles Type C with Nut and Roll Pin

The grade 100 shackles type C with bolt, nut and roll pin TWN 1871 are used as end fittings in chain slings. The type C shackles can also be mounted directly on shackles and traverses. The dimensions of the type C shackles comply with the DIN 82101.

The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of grade 100 load capacities.

Bolt Shackles Type C with Nut and Roll Pin

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.


[kg]

CAD


STEP

CAD


IGES

d1

d2

d4

b1

b2

h1

6-10*

F303000

1.40

9

13

20

12.6

28

28

0.11

8-10*

F303005

2.50

12

14

26

17

38

38

0.19

10-10

F303100

4.00

15

16

32

21

47

49

0.45

Download

Download

13-10

F303200

6.70

19

20

40

27.6

62

61

0.84

Download

Download

16-10

F303300

10.00

23

24

48

33

75

73

1.49

Download

Download

20-10*

F303400

16.00

30

30

64

42

95

91

3.10

Download

Download

22-10

F303500

19.00

33

36

72

47

107

111

4.59

Download

Download

*On request
