Lifting Products Grade 100 Lifting Products Grade 100

TWN 1896
Shortening Devices for Fixed Size Master Links

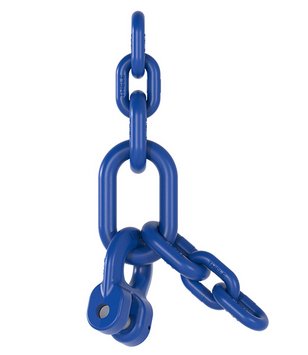

The grade 100 shortening devices for fixed size master links TWN 1896 are used in chain slings and enable the strand lengths to be adapted to the conditions of use.

The manufacturing and testing requirements are based on the DIN EN 818-4, DIN EN 1677 parts 1 and 4 and the DIN 5688-3, under consideration of grade 100 load capacities.

Shortening Devices for Fixed Size Master Links

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

e

e1

e2

Bow

d

t

b

6-10

F189606

1.40

137

31

60

10

46

23

0.32

Download

Download

8-10

F189608

2.50

175

38

78

13

60

30

0.70

Download

Download

10-10

F189610

4.00

215

46

99

16

70

35

1.40

Download

Download

13-10

F189613

6.70

270

59

126

18

85

40

2.60

Download

Download

16-10

F189616

10.00

326

76

150

22

100

50

5.00

Download

Download

Inquire about product >
