Lifting Products Grade 100 Lifting Products Grade 100

TWN 1795

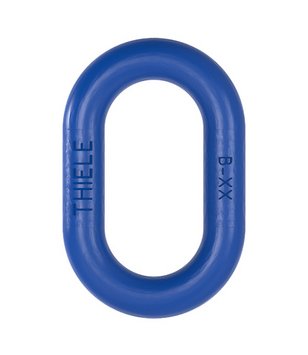

Intermediate Master Links Type B

The grade 100 intermediate links TWN 1795 are used to manufacture chain slings. The dimensions are according to the DIN 5688-3 and enable the use of connecting links, e.g.  XL-LOKs TWN 1820.

The manufacturing and testing requirements are based on DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities.

Intermediate Master Links Type B

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

d

t

b

B8

F179508

1.40

8

36

18

0.05

Download

Download

B10

F179510

2.50

10

46

23

0.09

Download

Download

B13

F179513

4.00

13

60

30

0.20

Download

Download

B16

F179516

6.70

16

70

35

0.36

Download

Download

B20

F179520

10.00

20

90

45

0.73

Download

Download

B22

F179522

12.50

22

100

50

0.97

Download

Download

B26

F179526

16.00

26

120

60

1.60

Download

Download

B28

F179528

19.00

28

130

65

1.90

Download

Download

B32

F179532

26.50

32

140

70

2.90

Download

Download

B36

F179536

31.30

36

160

80

4.20

Download

Download

B40

F179540

40.00

40

180

90

5.80

Download

Download

B45

F179545

50.00

45

200

100

8.20

Download

Download
