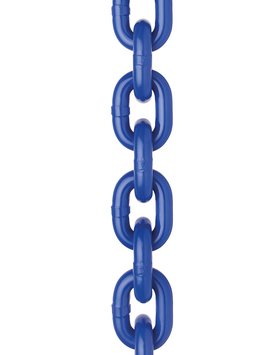

Lifting Chains XL400

The grade 100 lifting chains XL400 are made from CrNiMo alloy steel and are used to assemble chain slings and lashing chains. The max. application temperature is 380°C. The lifting chains are especially characterized by their certified fatigue strength. The manufacturing and testing requirements for these high-quality round steel chains are based on the DIN EN 818, PAS 1061 and on the German Statutory Accident Insurance test principle GS-HM 37.

Lifting Chains XL400

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Nom. Size

dn

[mm]

Pitch

pn

[mm]

Inside Width

w3

[mm] min.

Outside Width

w2

[mm] max.

Weight
app.


[kg/m]

CAD


STEP

CAD


IGES

6-10

F01610B

1.40

6

18

8.40

22.20

0.89

Download

Download

8-10

F01615B

2.50

8

24

11.30

29.60

1.59

Download

Download

10-10

F01622B

4.00

10

30

13.40

37.00

2.48

Download

Download

13-10

F01629B

6.70

13

39

18.00

48.10

4.18

Download

Download

16-10

F01635B

10.00

16

48

21.40

59.20

6.34

Download

Download

20-10

F01638B

16.00

20

60

26.80

74.00

9.91

Download

Download

22-10

F01650B

19.00

22

66

29.50

81.40

12.00

Download

Download

26-10

F01660B

26.50

26

78

34.80

96.20

16.70

Download

Download

32-10

F01670B

40.00

32

96

42.80

118.40

26.10

Download

Download
