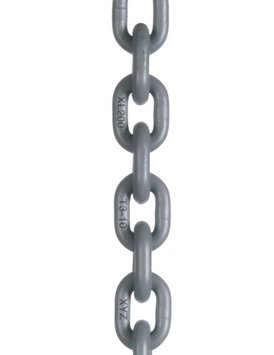

Grade 100 lifting chains XL200 are made from CrNiMo alloyed steel and are used to assemble chain slings and lashing chains. The max. application temperature is 205°C.
The testing requirements for these high-quality lifting chains are based on the DIN EN 818 and ASTM 973.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 100
TWN 0072
Lifting Chains XL200
Properties
Trade Size | Article-No. | Working [t max.] | Nom. Size | Pitch | Inside Width w1 [mm min.] | Outside Width w2 [mm max.] | Weight ca. [kg/m] | CAD STEP | CAD IGES | ||
dn [mm] | Abw. ± [mm] | pn [mm] | Abw. ± [mm] | ||||||||
6-10 | F01616 | 1.40 | 6 | 0.22 | 18 | 0.5 | 7.95 | 22.20 | 0.9 | ||
7-10 | F01621 | 2.00 | 7 | 0.38 | 21 | 0.7 | 9.53 | 25.90 | 1.2 | ||
8-10 | F01617 | 2.60 | 8 | 0.45 | 24 | 0.7 | 10.92 | 29.60 | 1.6 | ||
10-10 | F01618 | 4.00 | 10 | 0.54 | 30 | 0.9 | 13.00 | 37.00 | 2.5 | ||
13-10 | F01619 | 6.80 | 13 | 0.69 | 39 | 1.2 | 17.48 | 48.10 | 4.1 | ||
16-10 | F01620 | 10.30 | 16 | 0.86 | 48 | 1.4 | 20.63 | 59.20 | 6.2 | ||
18-10 | F01642 | 12.50 | 18 | 0.98 | 54 | 1.6 | 23.40 | 66.60 | 7.4 | ||
