The grade 80 clevis foundry hooks TWN 0859 are used to assemble chain slings, primarily for foundries.
The manufacturing and testing requirements comply with the DIN EN 1677-1.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0859

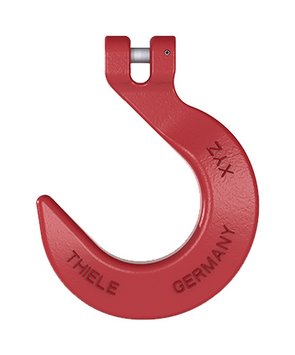

Clevis Foundry Hooks
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||
e | g | h | c | ||||||
8-8 | F33310 | 2.00 | 110 | 66 | 33 | 27 | 1.12 | ||
10-8 | F33320 | 3.15 | 133 | 76 | 35 | 32 | 1.61 | ||
13-8 | F33330 | 5.30 | 159 | 89 | 41 | 38 | 3.40 | ||
16-8 | F33340 | 8.00 | 189 | 102 | 48 | 45 | 5.50 | ||
20-8 | F33355 | 12.50 | 217 | 114 | 54 | 51 | 9.00 | ||
22-8 | F33360 | 15.00 | 244 | 124 | 60 | 56 | 12.00 | ||
