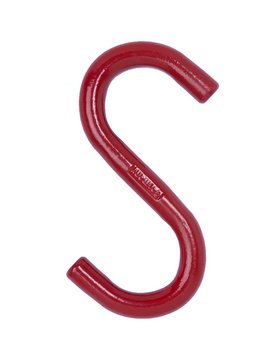

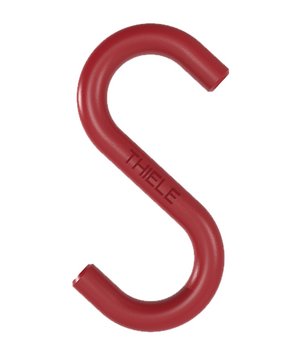

The grade 80 S-hooks TWN 0860 can be used universally for lifting of loads, also in combination with chain slings.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0860
S-Hooks
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||
e | g | t | d | ||||||
F18130 | 0.15 | 80 | 28 | 30 | 10 | 0.12 | |||
F18160 | 0.25 | 100 | 36 | 38 | 12 | 0.21 | |||
F18180 | 0.40 | 130 | 46 | 48 | 16 | 0.48 | |||
F18200 | 0.80 | 160 | 56 | 58 | 20 | 0.91 | |||
6-8 | F18220 | 1.12 | 180 | 64 | 64 | 22 | 1.20 | ||
7-8 | F18230 | 1.50 | 200 | 70 | 70 | 26 | 1.90 | ||
8-8 | F18250 | 2.00 | 230 | 80 | 80 | 32 | 3.40 | ||
10-8 | F18260 | 3.15 | 260 | 90 | 90 | 36 | 4.80 | ||
F18280 | 4.00 | 300 | 104 | 104 | 40 | 6.80 | |||
F18290 | 4.50 | 350 | 122 | 121 | 45 | 10.00 | |||
13-8 | F18300 | 5.30 | 400 | 140 | 138 | 51 | 14.60 | ||
F18310 | 6.00 | 450 | 158 | 154 | 57 | 20.50 | |||
16-8 | F18320 | 8.00 | 500 | 160 | 160 | 63 | 27.40 | ||
18-8 | F18330 | 10.00 | 550 | 166 | 168 | 72 | 39.00 | ||
