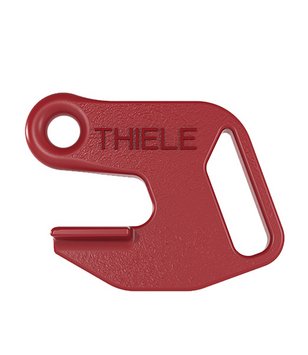

The grade 80 pipe transport hooks TWN 0868 are used as forged end fittings in 2-leg chain slings to lift pipes. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0868
Pipe Transport Hooks
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | ||||||
b | a | d1 | d2 | g | h | c | ||||||
13-8 | F32608 | 5.30 | 174 | 226 | 28 | 20 | 49 | 57 | 60 | 3.10 | ||
22-8 | F32641 | 15.00 | 274 | 345 | 44 | 30 | 80 | 90 | 95 | 14.62 | ||
