TWN 0869

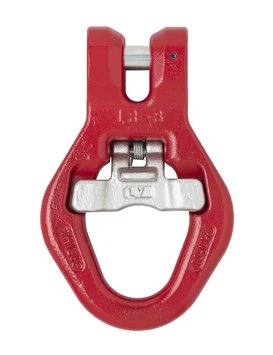

Clevis Skip Suspension Links for One-Hand Operation and Forged Safety Latch

The grade 80 skip suspension links TWN 0869 connect chain slings with the pivot of containers, e.g. containers according to DIN 30720. The shape of the eyelet is designed to fit container suspension pivots. The clevis design enables the direct attachment to the lifting chain. The forged safety latch allows a safe one-hand operation.

The manufacturing and testing requirements are based on DIN EN 1677 parts 1 and 4.

Clevis Skip Suspension Links for One-Hand Operation  and Forged Safety Latch

Properties

Trade Size



Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

e

f

b

a

13-8

F313800

5.30

142

57.5

65

122

1.92

Download

Download

16-8

F313850

8.00

141

57.5

65

122

1.92

Download

Download
