The grade 80 eye foundry hooks with handle TWN 0856/1 are used to assemble chain slings, primarily for foundries. The associated lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The handle ensures an safe and easy handling.
The manufacturing and testing requirements comply with the DIN EN 1677-1.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
- THIELE Merchandise
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0856/1

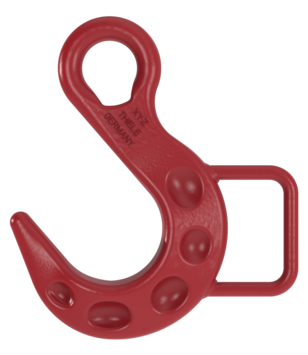

Eye Foundry Hooks with Handle
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||||||||
a | b | c | d1 | d2 | d3 | e | f | g | h | ||||||
16-8 | F32396 | 8.00 | 60 | 110 | 45 | 54 1) | 23 | 16 | 229 | - | 102 | 48 | 5.20 | ||
18/20-8 | F32406 | 12.50 | 60 | 110 | 59 | 59 | 27 | 16 | 259 | 70 | 114 | 63 | 8.40 | ||
1) With circular eyelet | |||||||||||||||
