The grade 80 eye sling hooks TWN 0855/1 are used to assemble chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The safety latch prevents unintentional detachment from the load. The sling hooks comply with the DIN EN 1677-2.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Lifting Products Grade 80
TWN 0855/1

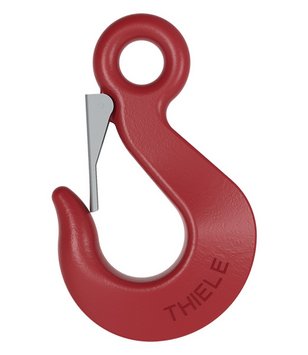

Eye Sling Hook with Safety Latch
Properties
Trade Size | Article-No. | Working [t] | Dimensions [mm] | Weight [kg] | CAD STEP | CAD IGES | |||||
e | d1 | g | h | c | d2 | ||||||
36-8 | Z06159 | 40.00 | 388 | 72 | 90 | 103 | 78 | 44.5 | 32.30 | ||
40-8 | Z06160 | 50.00 | 442 | 84 | 103 | 116 | 89 | 50.5 | 47.00 | ||
45-8 | Z06161 | 63.00 | 494 | 90 | 114 | 130 | 99 | 56 | 64.40 | ||
50-8 | Z06162 | 80.00 | 610 | 102 | 131 | 145 | 110 | 63 | 81.90 | ||
