The TM chain blocks TWN 1000 are handoperated portable devices for pulling, lifting and moving of loads. The integrated slipping clutch works as an overload protection. The galvanized THIELE-load chains TWN 0062 comply with the requirements of the DIN EN 818-7.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Load Lifting Equipment
TWN 1000
TM Chain Blocks
Properties
Unit | TM-B-OP 05N | TM-B-OP 10N | TM-B-OP 20N | TM-B-OP 30N | TM-B-OP 50N | |
Working | [t] | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 |
Lift app. 3,05 m | [Article-No.] | F063511 | F063611 | F063711 | F063811 | F063911 |
Lift app. 4,60 m | [Article-No.] | F063512 | F063612 | F063712 | F063812 | F063912 |
Lift app. 6.10 m | [Article-No.] | F063513 | F063613 | F063713 | F063813 | F063913 |
Lift app. 9,10 m | [Article-No.] | F063514 | F063614 | F063714 | F063814 | F063914 |
Lift app. 12,20 m | [Article-No.] | F063515 | F063615 | F063715 | F063815 | F063915 |
Chain Falls | [piecesl] | 1 | 1 | 1 | 2 | 2 |
Effort to lift for max. Working Load | [kg] | 23 | 30 | 35 | 27 | 41 |
Loadchain diameter | [mm] | 6 | 6 | 8 | 8 | 10 |

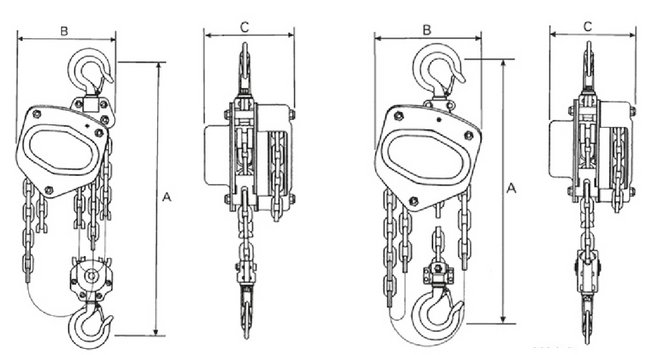

Headroom (A) | [mm] | 270 | 317 | 414 | 465 | 636 |
Width (B) | [mm] | 127 | 158 | 187 | 210 | 288 |
Depth (C) | [mm] | 131 | 140 | 161 | 161 | 190 |
Hook opening (upper) | [mm] | 36 | 42 | 46 | 54 | 64 |
Hook opening (lower) | [mm] | 36 | 42 | 46.00 | 54 | 64 |
Net weight (for lift 3,05 m) | [kg] | 13.63 | 16.03 | 23.76 | 29.96 | 28.60 |
Chain Block only | [Article-No.] | F06353 | F06363 | F06373 | F06383 | F06393 |
