TWN 0805
Lifting Chains

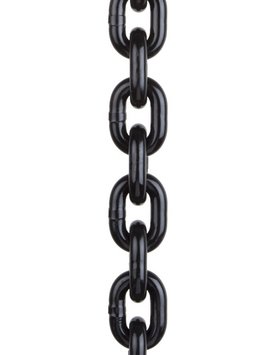

The grade 80 lifting chains TWN 0805 are made from CrNiMo alloy steel and are used to assemble chain slings and lashing chains. The max. application temperature is 400°C.

The manufacturing and testing requirements of these high-quality round steel chains are based on the DIN EN 818-2 and on the German Statutory Accident Insurance test principle GS-HM 37.

Lifting Chains

Properties

Trade Size



Article-No.

Working
Load Limit


[t]

Nom. Size

dn

[mm]


Pitch

pn

[mm]


Inside Width

w3

[mm] min.

Outside Width

w2

[mm] max.

Weight
app.


[kg/m]

CAD


STEP

CAD


IGES

self-coloured

RAL 9005

Corrothiel

Electro
galvanized

6-8

F01452

F01453

F01454

F01448

1.12

6.00

18.00

7.80

22.20

0.82

Download

Download

7-8

F01458

F01459

F01457

F014601

1.50

7.00

21.80

9.50

25.20

1.10

Download

Download

8-8

F01464

F01465

F01429

F01433

2.00

8.00

24.00

10.90

29.60

1.46

Download

Download

10-8

F01469

F01470

F01450

F01445

3.15

10.00

30.00

13.00

37.00

2.26

Download

Download

13-8

F01474

F01475

F01476

F014781

5.30

13.00

39.00

17.40

48.10

3.76

Download

Download

16-8

F01479

F01480

F01487

F014821

8.00

16.00

48.00

20.80

59.20

5.70

Download

Download

18-8

F01484

F01485

F04580

F01484G

10.00

18.00

54.00

23.40

66.60

7.10

Download

Download

20-8

F01494

F01495

F04606

F014944

12.50

20.00

60.00

26.00

74.00

9.00

Download

Download

22-8

F01499

F01500

F04629

F015111

15.00

22.00

66.00

28.60

81.40

10.90

Download

Download

26-8

F01514

F01515

F04695

*

21.20

26.00

78.00

33.80

96.20

15.20

Download

Download

28-8

F01519

F01520

F01521

25.00

28.00

84.00

36.40

104.00

17.60

Download

Download

32-8

F01524

F01525

F01526

F01527

31.50

32.00

96.00

41.60

118.00

23.00

Download

Download

36-8

F01529

F01530

F04814

40.00

36.00

108.00

46.80

133.00

29.00

Download

Download

40-8

F01534

F01535

F04838

50.00

40.00

120.00

52.00

148.00

36.00

Download

Download

45-8

F01539

F01540

F04889

63.00

45.00

135.00

58.50

167.00

45.50

Download

Download

50-8

F01545

F01546

F04900

80.00

50.00

150.00

65.00

185.00

56.00

Download

Download

56-8

F01555

F01556

F04908

100.00

56.00

170.00

72.80

207.00

72.50

Download

Download

63-8

F01566

125.00

63.00

190.00

81.90

233.00

89.00

Download

Download

71-8

F01598

160.00

71.00

210.00

92.30

263.00

113.00

Download

Download

*On request

Inquire about product >
