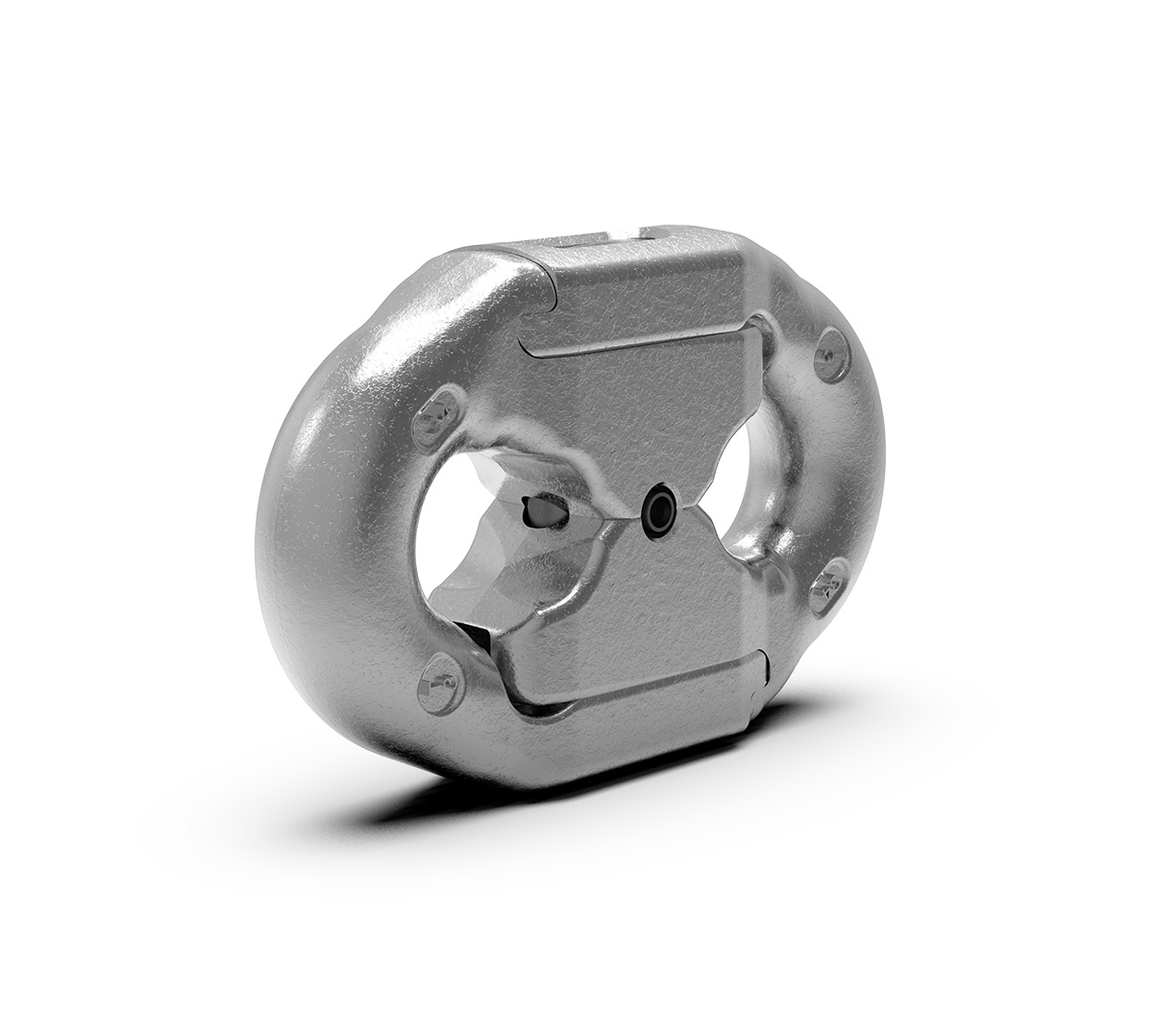

The TKF connector has been developed for vertical (round link chains only) and horizontal applications.
The mechanical properties are at least the equivalent of DIN 22258 Part 1.
-
-
Mining
- Chains
- Chain Grades
- Connectors
- Flight Bars
- Assemblies
- Accessories
- Contact
-
Industry
- Lifting Technology
- Load Securing
- Application Engineering
- Light Material Handling
-
Conveying of Bulk Material
-
Mining
- Company
- Career
Flat Type Connectors
TKF-Connectors
Properties
Trade Size d x t | Article-No.
| Dimensions | Work Force WF kN max. | Breaking Force kN min. | Weight Kg | |||||||||
d | t | b1 min. | b2 max. | c max. | f max. | l max. | r +2 | |||||||
30 x 108 | F 26061 | 30 | ± 0,9 | 108 | ± 1,1 | 32 | 111 | 37 | 72 | 171 | 48 | 707 | 1,000 | 2.6 |
34 x 126 | F 26071 | 34 | ± 1,0 | 126 | ± 1,3 | 37 | 122 | 41 | 82 | 198 | 55 | 907 | 1,290 | 4.2 |
38 x 137 | F 26081 | 38 | ± 1,1 | 137 | ± 1,4 | 41 | 137 | 46 | 91 | 217 | 61 | 1,130 | 1,610 | 5.7 |
Note: the above values apply to chains in ‘natural black’ condition (NSW); condition at time of delivery: galvanized | ||||||||||||||
