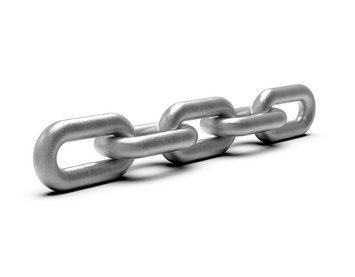

TSD Round Steel Chain (THIELE Super Duty)

Like TRQ Chains, THIELE TSD Round Link Chains (THIELE Super Duty) were developed in order to achieve the greatest possible wear resistance when used on chain scraper conveyors and a higher breaking force. The material strength of the legs is deliberately reduced by precise heat treatment, which increases the crack arrest capacity in order to prevent cracking caused by the friction martensite as a result of chain speeds of > 0.5 m/s. This makes TSD Chains ideally suited for use on stage loaders (BSL).
The extreme crown hardness of TSD Chains results in a very high wear resistance and a higher breaking force too. The latter is however an unintentional side effect. As the increased hardness also means a reduction in toughness and a greater sensitivity to stress corrosion cracking TSD Chains are not recommended for use on face conveyors operating in a corrosive environment.

TSD Round Steel Chain (THIELE Super Duty)

Properties

Trade Size

d x t

[mm]

Nom. Size


d

Pitch


t

Round Link

Length at n

Weight
app.


kg/m

Inside Width

b1 min.

Outside Width

b2 max.

5 x t

14 x 50

14

± 0,4

50

± 0,5

17

48

250

± 1,0

4.0

18 x 64

18

± 0,5

64

± 0,6

21

60

320

± 1,0

6.6

19 x 64,5

19

± 0,6

64.5

± 0,6

22

63

322.5

± 1,0

7.6

22 x 86

22

± 0,7

86

± 0,9

26

73

430

± 1,0

9.5

24 x 86

24

± 0,7

86

± 0,9

28

79

430

± 1,0

11.6

26 x 92

26

± 0,8

92

± 0,9

30

85

460

± 1,0

13.7

30 x 108

30

± 0,9

108

± 1,1

34

97

540

± 1,1

18.0

34 x 126

34

± 1,0

126

± 1,3

38

109

630

± 1,3

22.7

38 x 137

38

± 1,1

137

± 1,4

42

121

685

± 1,4

29.0

42 x 137

42

± 1,1

137

± 1,4

48

139

685

± 1,4

36.7

Trade Size

d x t

Article-No.

TEC

Proof Force

kN

Elongation under test force

% max.

Breaking Force

kN min.

Elongation at Break

%

Deflection

[mm]

22 x 86

F14009

530

1.6

750

16

18

24 x 86

F13454

630

1.6

900

16

19

26 x 92

F14005

740

1.6

1,050

16

21

30 x 108

F14045

990

1.6

1,400

16

24

34 x 126

F14077

1,270

1.6

1,800

16

27

38 x 137

F14085

1,590

1.6

2,250

16

30

Note: the above values apply to chains in ‘natural black’ condition (NSW)
