Lifting Products Grade 100 Lifting Products Grade 100

TWN 1836

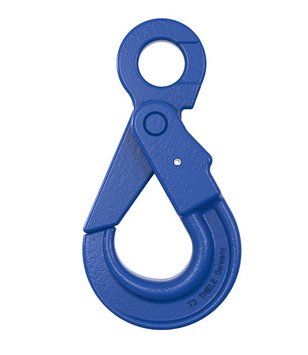

Eye Self-Locking Hooks

The grade 100 eye self-locking hooks TWN 1836 are used to assemble lifting slings and are also used in the construction industry. The round steel chains may be assembled with connecting links, e.g. XL-LOKs TWN 1820. When the hooks are under load, they lock automatically. They may only be reopened manually,  when the hooks are not under load anymore.

The manufacturing and testing requirements comply with the DIN EN 1677-3 under consideration of the grade 100 load capacities.

Eye Self-Locking Hooks

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.


[kg]

CAD


STEP

CAD


IGES

c

d1

d2

e

g

h

l

6-10*

F092003

1.40

18

22

10

107

26.5

22

140.5

0.52

Download

Download

7/8-10*

F092103

2.50

23

24

11.5

133

33

25

169

0.88

Download

Download

10-10*

F092303

4.00

27

32

13

167

45

34

216

1.55

Download

Download

13-10*

F092403

6.70

35

39

16

205

52

45

271

3.20

Download

Download

13-101)

F092233

6.70

32.5

40

16

209

53.5

40.5

270

2.92

16-10*

F092503

10.00

41

49

23

262

64

53

338

6.20

Download

Download

16-101)

F092243

10.00

38

50

20.5

254

62

50.5

331

5.82

20-10*

F092603

16.00

48

59

26

282

77

55

365

9.20

Download

Download

22-10*

F092703

19.00

57

70

26

320

80

66

421

13.70

Download

Download

22-101)

F092273

19.00

52

70

24

319

80

66

417

11.74

26-10*

F092803

26.50

-

-

-

-

-

-

-

-

*On request
1) TWN 1836A

Request this product >
