Clevis Self-Locking Hooks

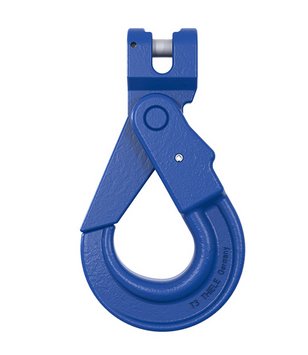

The grade 100 clevis self-locking hooks TWN 1837 are used to assemble chain slings and are often used in the construction industry. The clevis design enables the direct attachment to the chain strands. When the hooks are under load, they lock automatically. They may only be reopened manually when the hooks are not under load anymore.

The manufacturing and testing requirements comply with the DIN EN 1677-3 under consideration of the grade 100 load capacities.

Clevis Self-Locking Hooks

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.


[kg]

CAD


STEP

CAD


IGES

a

b

c

d

e

g

h

l

6-10*

F0920031

1.40

7

33

18

21.5

98

28

22

135

0.59

Download

Download

7-10*

F092013

1.90

9

39

23

23

120

33

25

164

0.94

Download

Download

8-10*

F092018

2.50

9

39

23

23

120

33

25

164

0.94

Download

Download

10-10*

F092023

4.00

13

47

27

28

150

45

34

204

1.66

Download

Download

13-10*

F092033

6.70

15.5

56

34

37.5

185

52

40

253

3.40

Download

Download

13-101)

F092032

6.70

15

59

32.5

31

182

53.5

40.5

251

3.00

16-10*

F092043

10.00

18

76

43

42

220

64

53

305

6.31

Download

Download

16-101)

F092042

10.00

17.5

70

38

41

217

62

50.5

303

5.92

20-10*

F092053

16.00

24

82

49

48

235

77

54

332

9.2

Download

Download

22-10*

F092063

19.00

25

106

57

57

260

92

74

386

14.60

Download

Download

22-101)

F092072

19.00

25,5

98

52

50

276,5

80

66

391

12.31

*On request
1) TWN 1837A

Request this product >
