TWN 1869

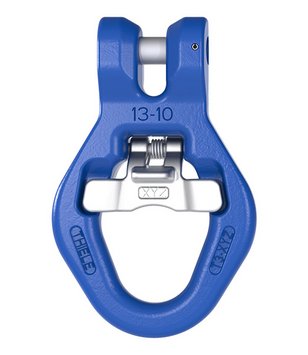

Clevis Skip Suspension Links for One-Hand Operation and Forged Safety Latch

The grade 100 skip suspension links TWN 1869 connect chain slings with the pivots on containers, e.g. containers according to the DIN EN 30720. The shape of the eyelet is designed to fit container suspension pivots. The clevis design enables the direct attachment to the chain. The forged safety latch enables a one-hand operation.

The manufacturing and testing requirements comply with the DIN EN 1677-1, under consideration of grade 100 load capacities.

Clevis Skip Suspension Links for One-Hand Operation  and Forged Safety Latch

Properties

Trade Size

Article-No.

Working
Load Limit


[t]

Dimensions

[mm]

Weight
app.

[kg]

CAD


STEP

CAD


IGES

e

f

b

a

13-10

F313805

6.70

142

57.5

65

122

1.94

Download

Download
